Applied Systems Design from first principles
Published
Your bar: walk into any blank-page design — interview or real review — and never freeze. One repeatable method drives every system in this book, so each design becomes filling in boxes, not improvising. Grounded in Alex Xu’s System Design Interview 1 and Kleppmann’s DDIA. 2
One sentence holds the whole method. Every design just runs it in order:
Clarify functional + non-functional
Estimate QPS, storage, bandwidth
API + data model for the hot query
Draw the boxes & arrows
Deep-dive the bottleneck & name the trade-off
The design method — never start by drawing boxes
Designing a system is not improvisation. It is a five-step gate you run in order.

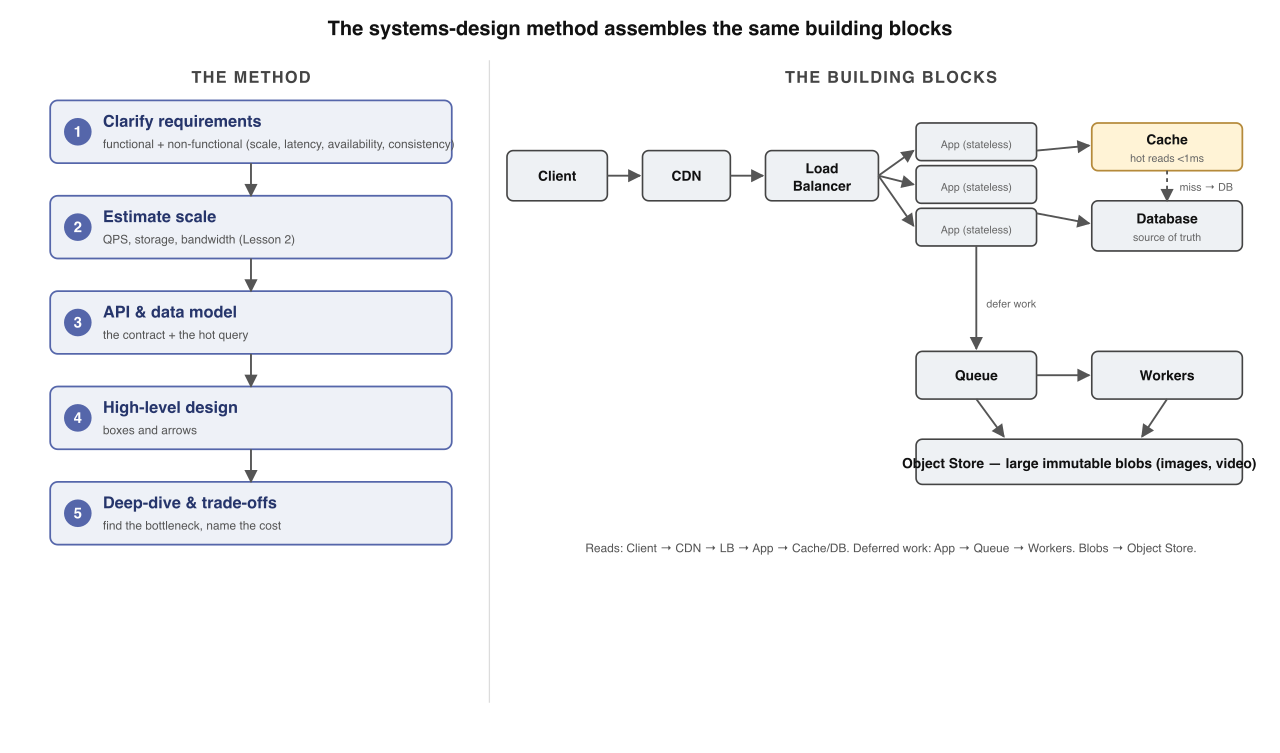

The method (left) and the canonical web-scale shape it draws (right): client → CDN → load balancer → stateless app servers → cache → DB, with a queue + workers for deferred writes and an object store for blobs.
| Non-functional dimension | The question you ask | Where the answer lives |
|---|---|---|
| Scale | How many users, QPS, GB/day? | Lesson 2 (estimation) |
| Latency | p99 read/write budget in ms? | Storage + caching |
| Availability | Tolerate a region loss? | Replication, quorums |
| Consistency | Read-your-writes, or eventual OK? | Consistency models |
The hinge question “Is a 200 ms-stale read OK?” Yes → caching + async replication unlock. No → you’ve committed to a quorum or single-leader path, and its cost.
Keep the app tier stateless Push state down into cache + DB; then any replica can die and you scale by adding identical ones behind the LB. 5
Six universal blocks LB · cache · DB · message queue · CDN · object store. You wire these same six for the next eight lessons.
There is no “best” Only an architecture matched to the requirements you clarified in step 1. State the trade-off you chose.
🧭 Memory rule: Clarify → Estimate → API + data → Draw → Deep-dive. The estimate, not the features, decides whether you shard from day one.
Memory check
- Five steps in order? → clarify, estimate, API+data, draw, deep-dive
- Which step forces partitioning? → estimate (the storage/QPS arithmetic)
- Why keep the app tier stateless? → scale by adding replicas, survive instance loss

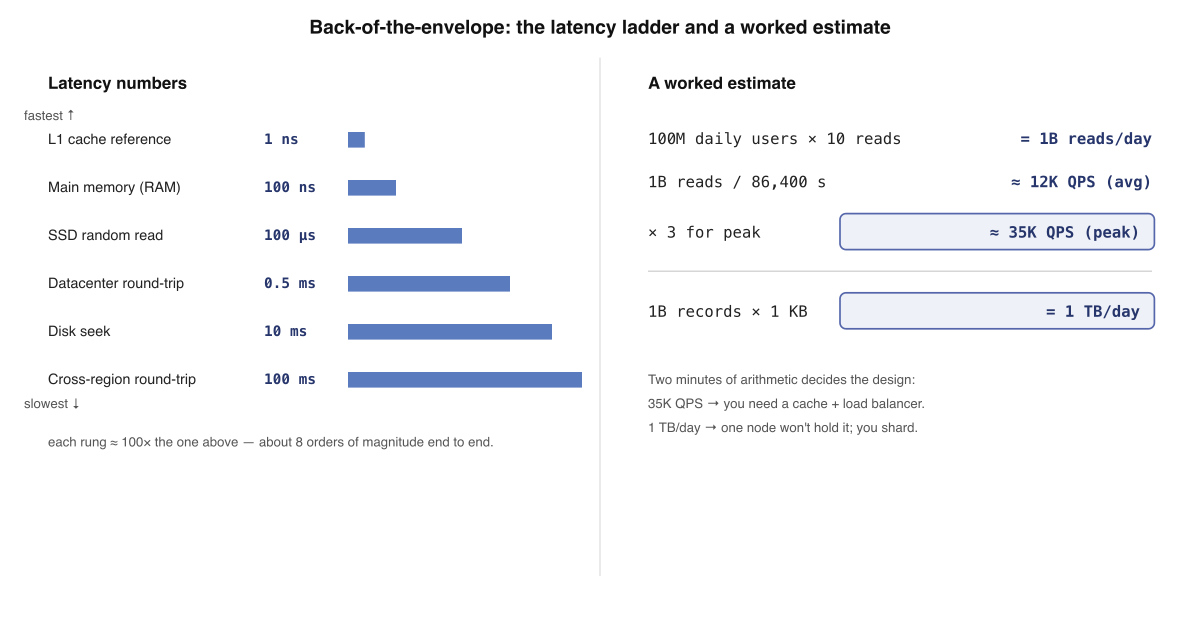

Back-of-the-envelope estimation — the bridge to architecture
Two minutes of arithmetic decides “one box” vs “a thousand.” Correct to within 10× is enough.
🧮 The QPS formula: avg QPS = (DAU × actions/day) ÷ 86,400, then peak ≈ avg × 2–3. There are 86,400 seconds in a day — that’s the denominator of every estimate.
Worked example: 100M DAU × 10 reads = 1B/day ÷ 86,400 ≈ 12K avg QPS, ×3 ≈ 35K peak. 1B writes/day × 1 KB × 3 replicas ≈ 1 PB/year → unambiguously a sharded fleet.
The anchor number A record is ~1 KB. A tweet, an order, a Kafka event — call it 1 KB unless you know better. Billions of records → terabytes by inspection.
One multiply per resource QPS, storage, bandwidth, memory each get one multiplication. Whichever blows past a single machine is your deep-dive.
Estimate reads + writes separately 100:1 read-heavy screams cache + replicas; write-heavy screams LSM-trees + a log-first ingest path.
Tail, not average, is the SLO p99 can be 10× the mean under load; at 100-way fan-out a 1-in-100 slow call hits nearly every request. 3
✓ The estimate IS the design constraint — it makes the rest inevitable, not arbitrary
Memory check
- 50M DAU × 20 writes, peak ×3 = ? → 1B/day ÷ 86,400 ≈ 12K avg → ~35K peak
- Biggest gap on the ladder? → RAM vs cross-region, ~200,000×
- Why is a 2× error fine? → decisions differ by 1000×, so 2× never flips the answer

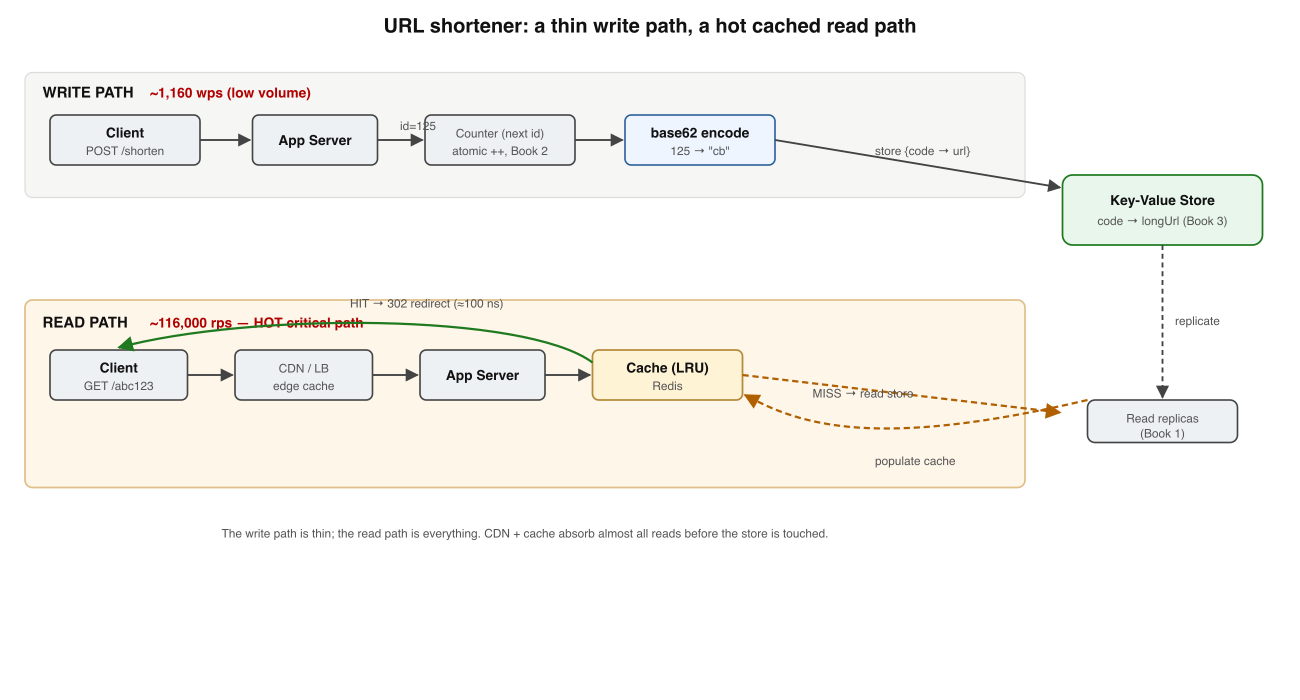

URL shortener — the canonical read-amplifier
One write is read thousands of times. Optimise the read path first; the write path can be almost naive.
Estimate: 100M URLs/day → ~1.2K wps, ~116K rps (100:1), ~180 TB over 10 years. Two conclusions: reads need a cache + CDN; storage forces partitioning.
Generating the short code — the design’s centre of gravity
| Concern | Hash of URL | Counter + base62 |
|---|---|---|
| Collisions | Possible; needs retry | None by construction |
| Same URL → same code | Free | Needs a lookup table |
| Predictability | Unpredictable | Sequential — guessable |
| Hotspot | Stateless | Counter is a write hotspot |
base62 length math 62⁷ ≈ 3.5 trillion codes — ten years of 100M/day with room. 62⁶ ≈ 56B would run out; 7 chars is the sweet spot.
Break the counter hotspot Hand each app server a range of IDs (a block of 1,000) so it increments locally and coordinates once per block.
Data model = pure KV code (PK) → longUrl, createdAt. Single-key
point lookups, no joins → a KV engine beats a relational schema you never query
relationally.
Read chain sheds load CDN → cache → read replica → leader. Immutable mappings mean cache invalidation is nearly free — exploit long TTLs.
✓ 301 is browser-cached → you lose click analytics. Pick 302 when tracking is a feature
🔗 Memory rule: A URL shortener is a read-amplifier — counter + base62 gives collision-free codes; the 301-vs-302 call is “save QPS” vs “keep your data.”
Memory check
- Why read-heavy? → ~100:1 redirects-to-creations
- Counter+base62's win? → unique codes, no collision retry
- 301 vs 302? → 301 cached (saves QPS, loses analytics); 302 hits server every time
Rate limiter — atomicity on the hot path
The smallest system in the book, and the one that forces an atomic counter on every single request.

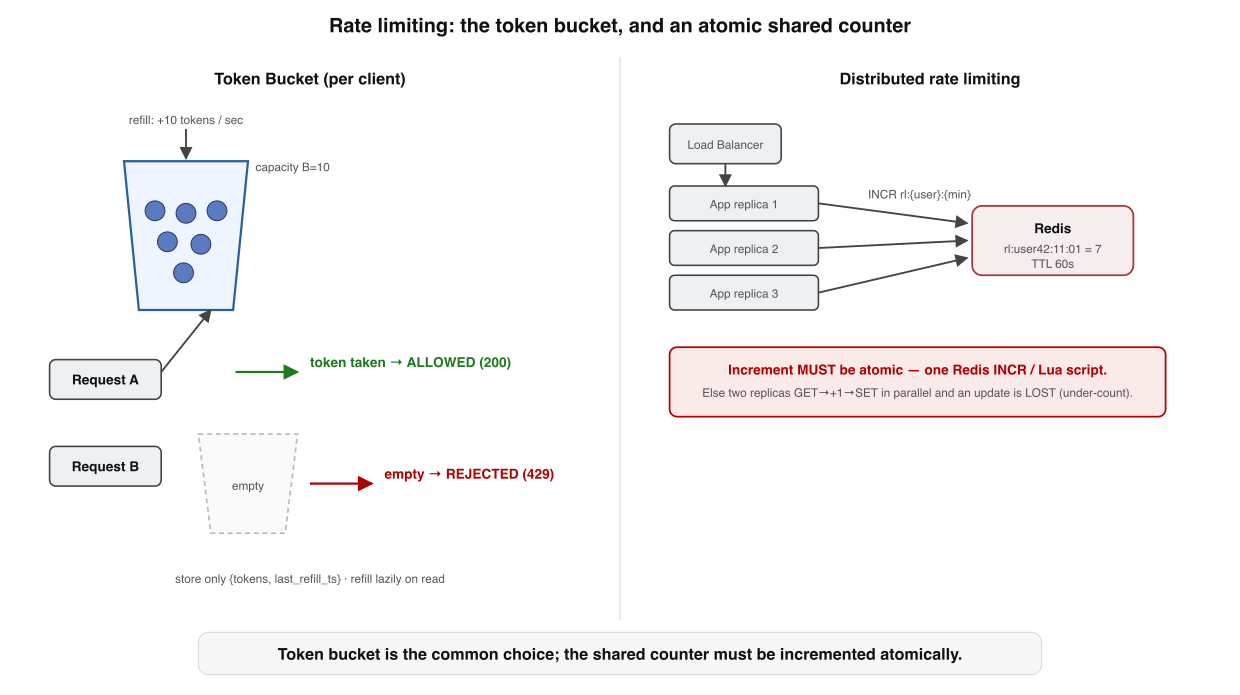

Token bucket allows a request when a token is present, returns 429 when empty. Many
gateway replicas issue one atomic INCR against a single Redis key so the
limit stays global.
| Algorithm | Memory / client | Accuracy | Notes |
|---|---|---|---|
| Fixed window | 1 integer | Low (2L at edges) | Cheapest |
| Sliding-window counter | 2 integers | High (~0.003% err) | Best general default |
| Sliding-window log | O(L) timestamps | Exact | Costly at high L |
| Token bucket | 2 numbers | High, allows bursts | Production default |
The lost-update trap Naive GET→+1→SET lets two replicas
overwrite each other. Redis INCR is atomic by construction → no lost
update.
Multi-step? Use a Lua script Refill + decrement + TTL wrapped in
EVAL runs as one atomic unit — a transaction collapsed to one instruction.
Where it lives Standard answer: the API gateway — one chokepoint sees all traffic before fan-out. Add per-service limits for expensive endpoints.
Fail-open vs fail-closed If shared Redis is unreachable, usually fail-open (availability over precision) with a per-replica local fallback.
✓ N replicas fragment the count → effective limit becomes N × L; you need one shared counter
🪣 Memory rule: Token bucket allows bursts up to B at average rate r; correctness across replicas needs an atomic shared counter (Redis INCR / a Lua script).
Memory check
- Why does INCR beat read-modify-write? → atomic single step, no interleaved lost update
- Fixed-window flaw? → 2L straddling the boundary
- Token bucket vs leaky bucket? → token allows bursts; leaky forces a smooth outflow
News feed — when do you pay the fan-out cost?
A many-to-many aggregation under a read-latency budget. The one decision: aggregate at write time or read time.

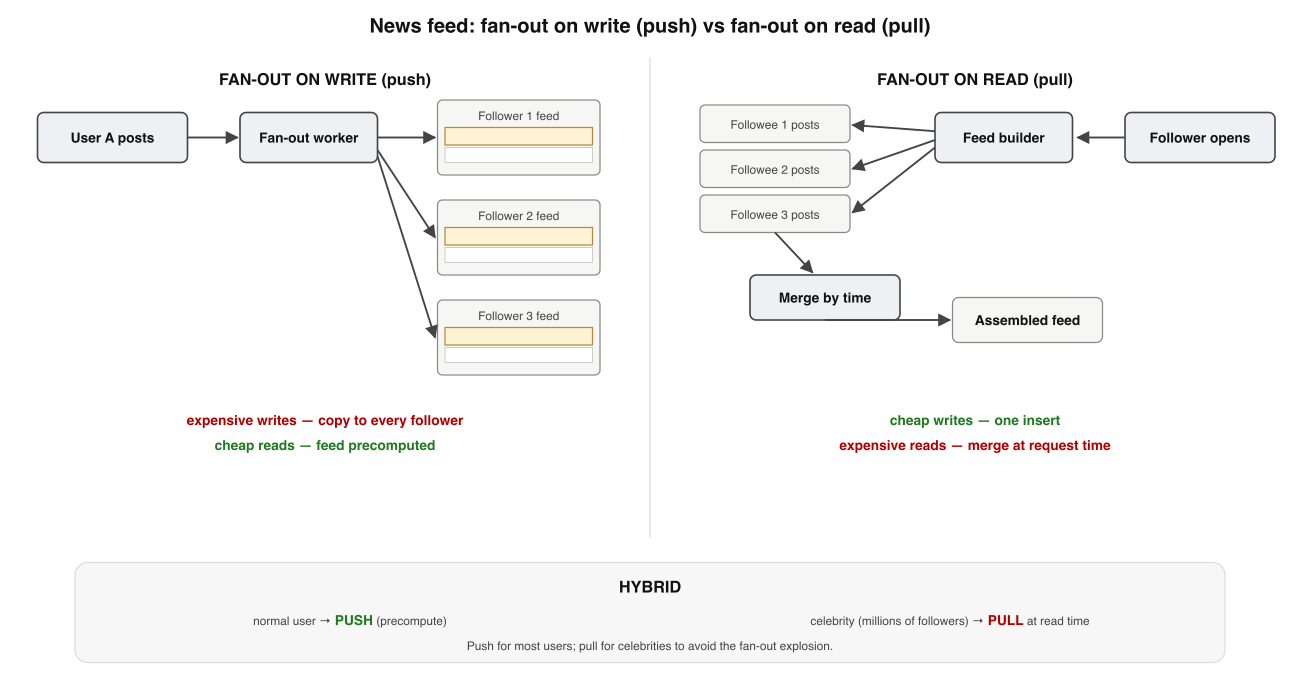

Push (left): copy a post into every follower’s precomputed feed → cheap reads, expensive writes. Pull (right): merge followees’ posts at read time → cheap writes, expensive reads.
| Fan-out on write (push) | Fan-out on read (pull) | |
|---|---|---|
| Cost of a post | high — write to every follower | low — one insert |
| Cost of a feed read | low — read precomputed list | high — merge at read time |
| Wasted work | feeds for inactive users | none |
| Freshness | a few seconds (fan-out lag) | always current |
Push wins by default Reads dominate (~5:1), so precomputing makes the common op a cheap cache lookup. The cost moves to write time.
The celebrity problem One post by a millions-follower account = a fan-out explosion (hot-key / skewed partition) that floods the write path.
The hybrid real systems run Normal users → push. Celebrities → pull (skip fan-out; merge their recent posts in at read time). You pay pull only where push would explode.
Store IDs, not bodies Feed = per-user list of
(postId, authorId, createdAt) in a Redis sorted set, capped ~1,000. A viral
post is stored once, referenced N times.
✓ It breaks on the high-follower account; the hybrid push+pull split is the resolution
📰 Memory rule: A feed is many-to-many aggregation under a latency budget — push for the masses, pull for celebrities, and run fan-out as an async outbox/log job.
Memory check
- Why push as default? → reads dominate; precompute makes them cheap
- What breaks pure push? → a millions-follower account posting (fan-out explosion)
- Why store IDs not bodies? → store viral post once, reference N times
Distributed cache — trade freshness for latency & load
Every cache decision is a bet on how stale a copy you can tolerate in exchange for not touching the DB.

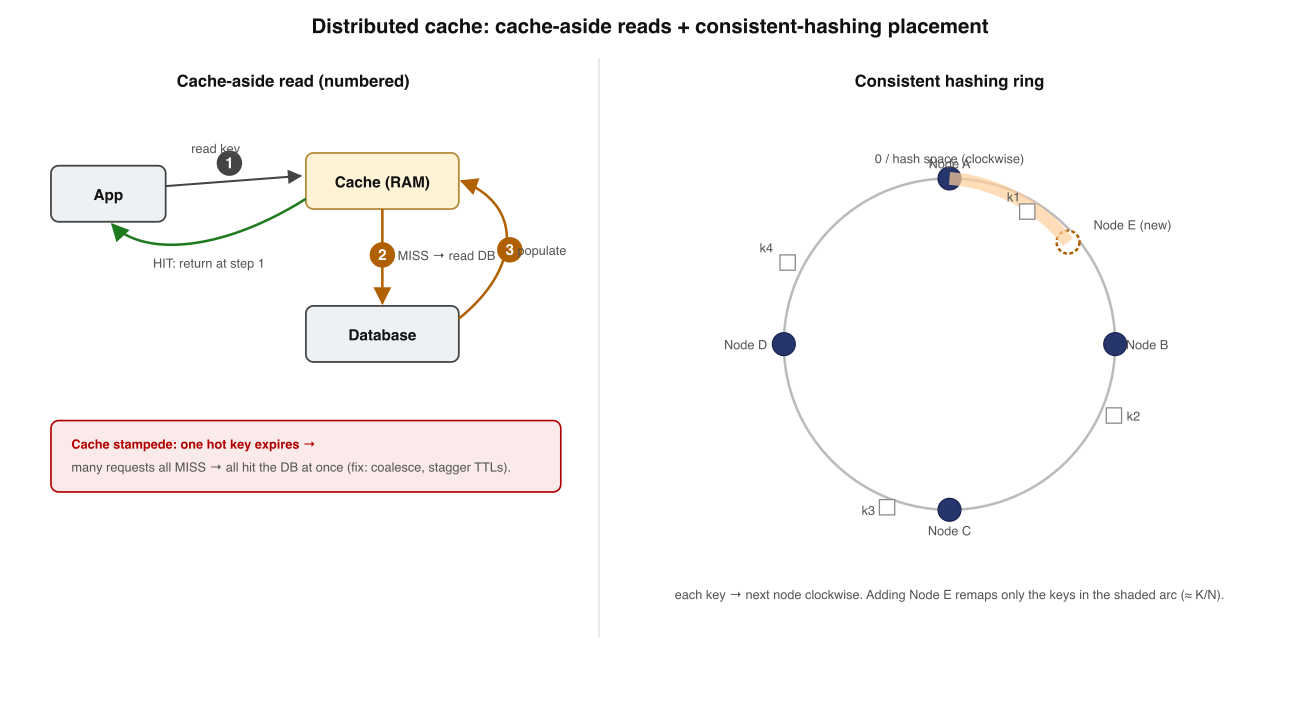

Cache-aside (left): on a miss, read the DB, populate, return. Consistent hashing (right): a key is owned by the next node clockwise; adding a node remaps only one arc (~K/N keys), not all of them.
| Strategy | Consistency | Write latency | Failure risk |
|---|---|---|---|
| Cache-aside | Eventual; stale until invalidated | DB only | Stale reads on a race |
| Write-through | Strong (cache tracks DB) | Cache + DB | Wasted writes |
| Write-back | Weak; cache leads DB | Cache only | Data loss on crash |
The load win 100K rps at 95% hit ratio leaves the DB serving 5K rps — a 20× reduction in the hardest thing to scale.
Why mod-N fails Change N (a deploy, a death) and almost every key remaps → the whole cache cold-starts and hammers the DB. Consistent hashing + virtual nodes fix it.
Cache stampede A hot key expires → every concurrent request misses at once. Fix with request coalescing (single-flight) + jittered/staggered TTLs.
Invalidation is the hard 20% A cache is derived data with no idea when its source changed. TTL is blunt; explicit invalidation is fragile; CDC from the DB’s change stream is the robust answer.
✓ Write-back acks from cache memory → a crash in the flush window loses acknowledged data
🗄️ Memory rule: Cache-aside is the workhorse; consistent hashing keeps reshards cheap; the two things that page you are stampede and invalidation.
Memory check
- 80K rps at 96% hit → DB rps? → ~3,200 (4% miss)
- Consistent hashing's win? → a membership change remaps only ~K/N keys
- Two stampede fixes? → request coalescing + staggered/jittered TTLs
Message queue — the partitioned, replicated log
Decouple producers from consumers. The core choice: a log that doesn’t delete on read.

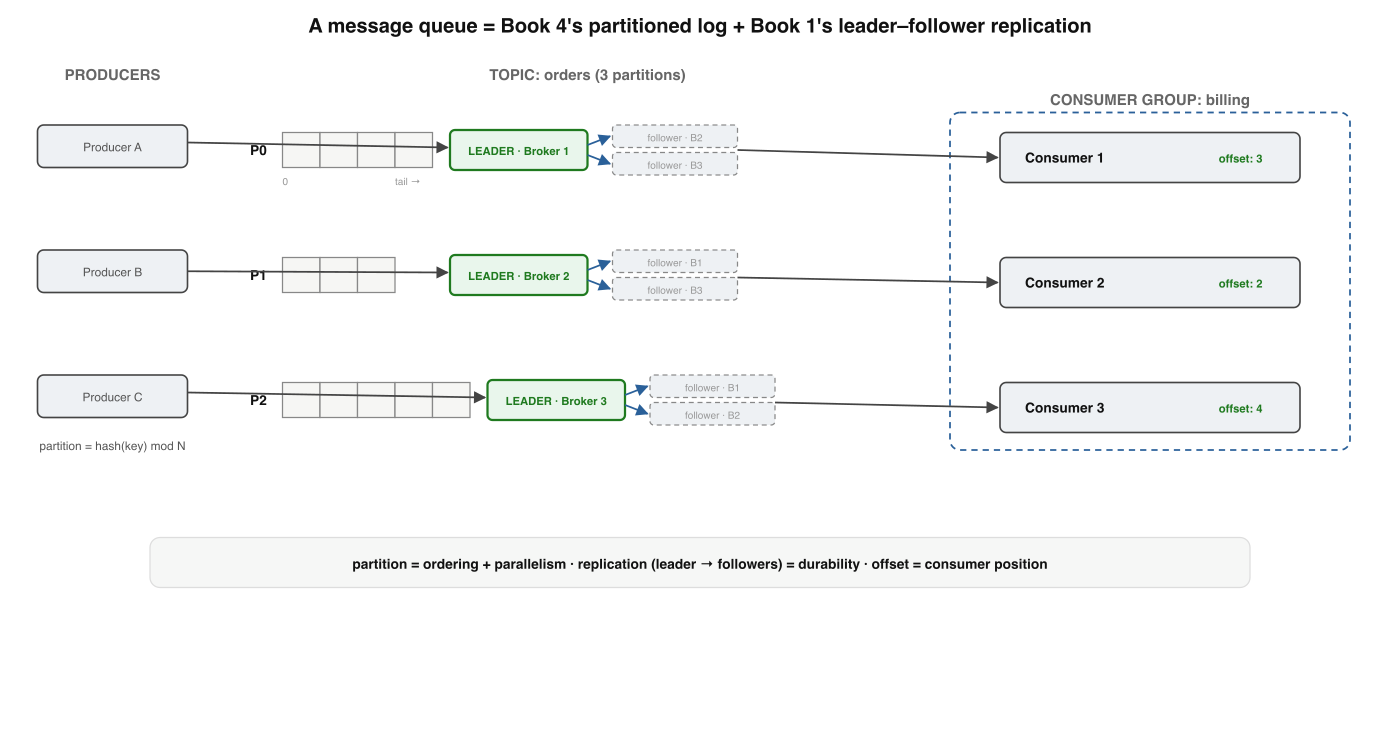

Producers append to a partitioned topic; each partition is replicated leader→followers; a consumer group tracks offsets. Estimate: 1M msg/s × 1 KB × 3 days × RF 3 ≈ 780 TB → a disk-resident system.
| Setting | Durability | Latency | Survives |
|---|---|---|---|
acks=0 | none | lowest | nothing |
| leader’s disk | low | follower loss |
| whole ISR | higher | leader loss (2 of 3) |
Log > delete-on-read Reading doesn’t delete — the consumer remembers its offset. Buys replayability, multiple independent consumers, cheap append-only durability.
Partition = parallelism + ordering Order holds only within a partition; route by
hash(key) mod N so all events for one key stay ordered. More partitions =
more throughput, weaker global order.
acks=all is R+W>N in disguise Leader + ISR; an acked write survives losing any 2 of 3 brokers. A new leader is elected from the ISR on failure.
Backpressure = lag A slow consumer just lags (tail offset − consumer offset); the buffer is retention itself. Monitor consumer lag — the #1 operational signal.
✓ A silently-shrunk ISR gives acks=1 durability; set min.insync.replicas=2
to reject under-replicated writes
📨 Memory rule: A partitioned append-only log + ISR replication; offset-commit timing picks at-most/at-least-once, and exactly-once = delivery + idempotent processing.
Memory check
- Why can many groups read one topic? → reads don't delete; each group has its own offset
- Where is ordering guaranteed? → within a partition, for one key
- Slow consumer in a log broker? → it lags; safe until past the retention window
Key-value store — the Dynamo ring
Where distributed systems and storage engines meet in one box: partitioned, replicated, tunably consistent.

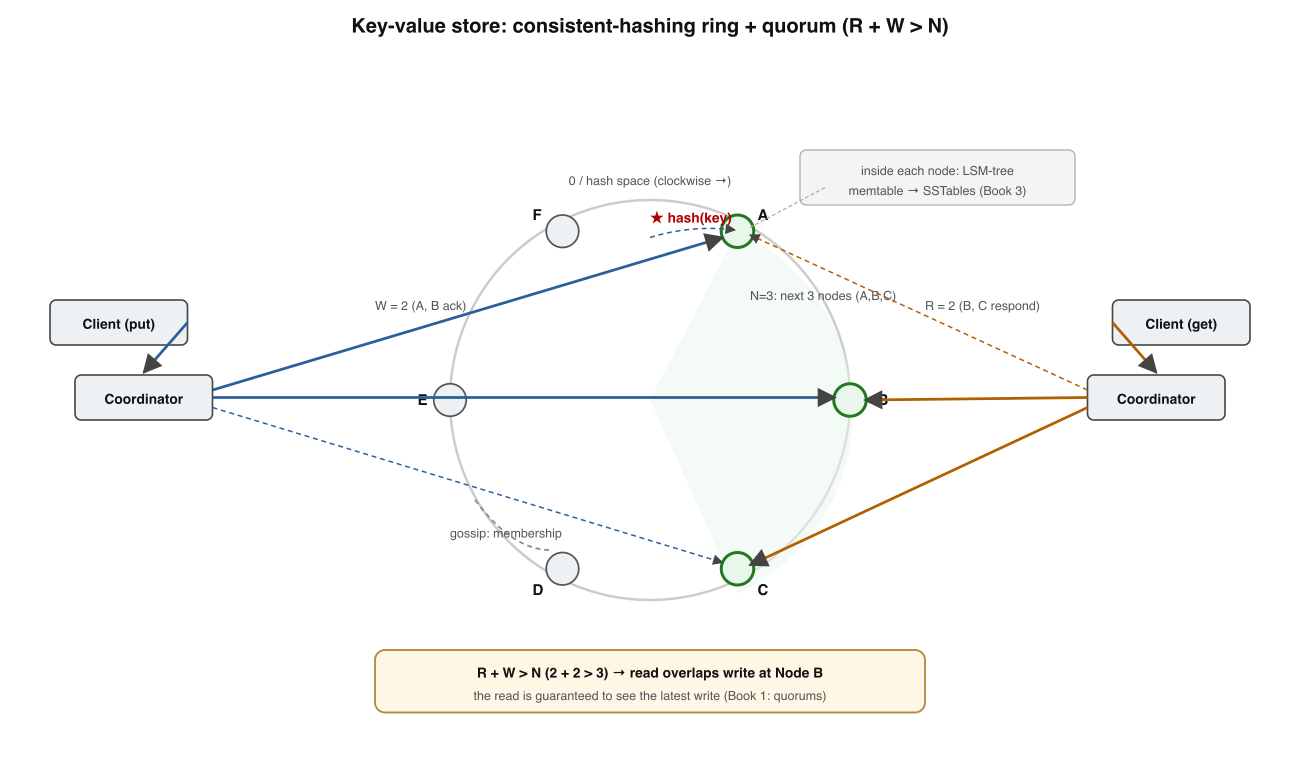

A key hashes to a ring position and is replicated on the next N=3 distinct nodes clockwise (its preference list). A W=2 write and an R=2 read overlap because R+W>N. 4
| Setting | R | W | Behaviour |
|---|---|---|---|
| Balanced | 2 | 2 | One node down tolerated; strong-ish reads |
| Fast write | 1 | 3 | Cheap reads, every write hits all replicas |
| Always writeable | 3 | 1 |
|
R + W > N The W nodes that took the latest write and the R nodes you read must share ≥1 node → the read sees the most recent acknowledged write.
Virtual nodes Each machine claims many small ring positions → load smooths across heterogeneous boxes; a dead node’s keys spread across many successors, not one.
Concurrent writes → vector clocks Track causality, not wall-clock. If neither clock descends from the other, the writes are concurrent — return both siblings, let the app merge (the cart unions items).
LSM per node + gossip Write-heavy → LSM-tree (sequential appends), not a B-tree. Merkle-tree anti-entropy repairs drift; gossip spreads membership in O(log N) with no coordinator.
✓ Clocks drift (no global clock) → LWW silently drops an update; vector clocks detect the conflict
💍 Memory rule: The ring places keys + nodes; the preference list replicates; R+W>N tunes consistency; vector clocks catch conflicts; LSM persists each node.
Memory check
- R,W for one-down + fresh reads (N=3)? → R=2, W=2
- What do virtual nodes solve? → load balance + spread a failed node's keys
- Why LSM not B-tree here? → write-heavy; sequential appends beat random in-place writes
Putting it together — the universal checklist & five levers
Every design reduces to: which lever, on which box, and what does it cost?

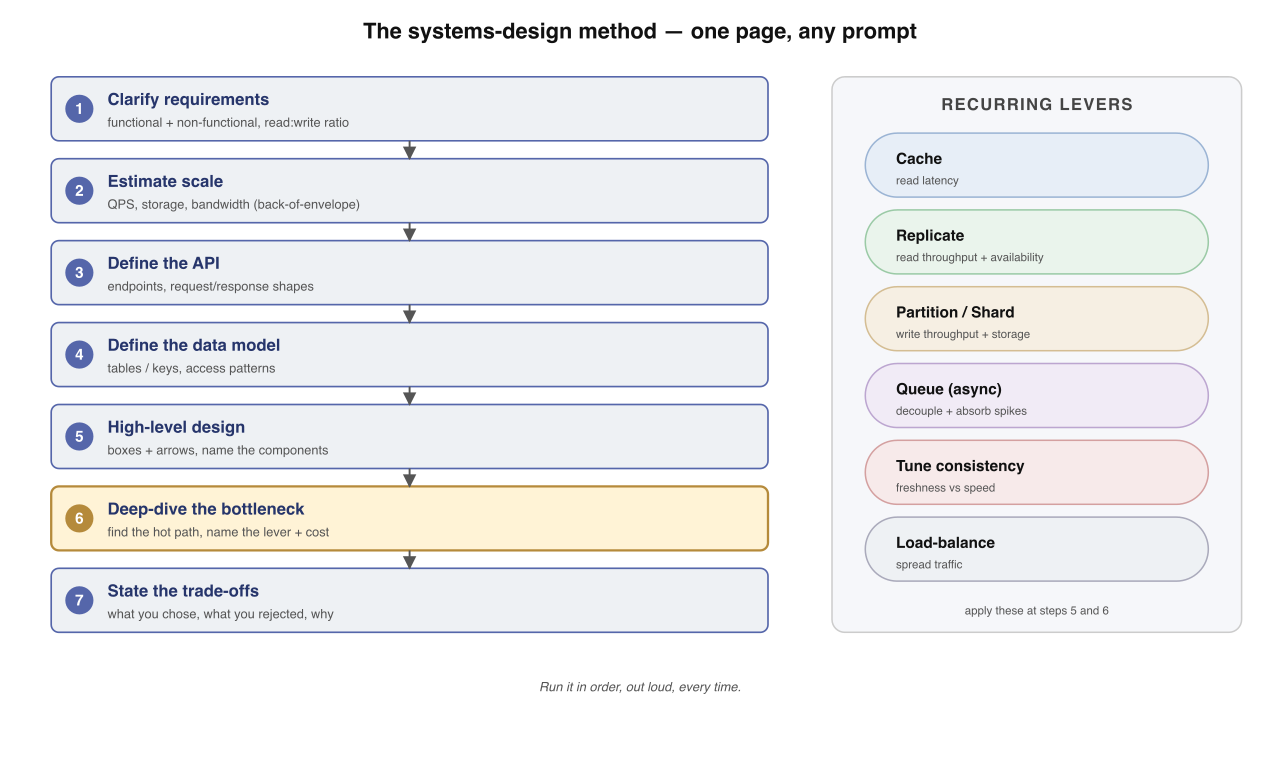

The checklist is a gate, not a menu: Clarify → Estimate → API → Data model → High-level design → Deep-dive the bottleneck → State the trade-offs. The five-lever palette runs down the right.
| Lever | What it buys | Reach for it when… |
|---|---|---|
| Cache | Read latency, fewer DB hits | read path is hot |
| Replicate | Read throughput, availability | survive a node loss / scale reads |
| Partition / shard | Write throughput, storage past one node | writes or data exceed one box |
| Queue (async) | Decouple, absorb spikes | survive a traffic spike |
| Tune consistency | Trade freshness for speed/availability | staleness is tolerable |
Senior signal Not picking the “right” answer — naming the alternative you rejected and the condition that would flip the call (“…but if this were account balances, I’d want sync replication”).
Immutable data = free caching Pastebin’s pastes never change, so the hard half of caching (invalidation) simply disappears. Spot immutability and exploit it.
Most “scale” is read-scale Cache + read replicas solve a huge fraction of prompts. Write-scale (sharding, outbox, Kafka) is the harder, rarer case.
The single-box baseline Before sharding, ask whether one big NVMe node + a read replica would do. Many “web-scale” problems fit on one box.
✓ The wire gives at-least-once; effectively-once = at-least-once + an idempotency key
✅ Memory rule: Faster reads → cache or replicate. Faster writes → partition or queue. Survive a node → replicate. Survive a spike → queue. Name the lever and its cost.
Memory check
- Why clarify before estimate? → scope fixes the read:write ratio + object sizes the estimate needs
- Which lever raises write throughput past one node? → partition / shard
- Critique "exactly-once"? → wire is at-least-once; effective-once needs idempotency keys
Retrieval practice — mix the designs
Reading builds fluency (feels familiar). Recall builds storage (lasts). Answer from memory — instant feedback.
Q1. In the five-step method, which step most directly decides whether you shard from day one?
Q2. Two gateway replicas each GET a counter (5), add 1, and SET 6. What went wrong?
Q3. What specific input breaks pure fan-out on write?
Q4. Why does consistent hashing beat hash(key) mod N for a distributed cache?
Q5. With a log-based broker, what happens when a consumer falls far behind the producer?
Q6. With N=3, which R/W tolerates one node down while a read still sees the latest write?
Reconstruct the method from a blank page
Write the seven checklist steps in order, then the five levers, with nothing on screen. Reveal and compare — gaps are your next drill.
Steps: 1 Clarify (functional + non-functional) · 2 Estimate (QPS, storage, bandwidth) · 3 API · 4 Data model (the hot query) · 5 High-level design (boxes & arrows) · 6 Deep-dive the bottleneck · 7 State the trade-offs. Levers: cache · replicate · partition/shard · queue (async) · tune consistency. Reductions: faster reads → cache/replicate · faster writes → partition/queue · survive a node → replicate · survive a spike → queue.
I’m your teacher — ask me anything. Say “grill me on these designs” for mixed no-clue questions, or drop a fresh prompt (“design a chat backend,” “design Dropbox”) and we’ll run the seven-step checklist on it together. Want the next track — spaced, interleaved design drills? Just ask.
Interview — pick your bar
Answer out loud in ~60s, then reveal. Core = recall · Senior = trade-offs & failure modes · Staff = synthesis under ambiguity · System Design = open design round (a different axis, not a harder level).
Walk me through the design method you run on any blank-page prompt.
100M DAU at 10 reads/day each — size the read QPS and storage out loud.
What goes in the API and data model for a URL shortener, and why a KV store?
POST /urls {longUrl} → short code, and GET /{code} → 301/302 redirect → data model is pure key-value: code (PK) → longUrl, createdAt → access is single-key point lookups, no joins or range scans → so a KV engine beats a relational schema you'd never query relationally → the mapping is immutable, so cache invalidation is nearly free and TTLs can be long.Name the five reusable levers and what each one buys you.
A teammate wants to size the database first and check the math later. Push back.
A rate limiter shares a Redis counter across N gateway replicas. What's the trap and the fix?
GET → +1 → SET interleaves across replicas and silently drops increments, so the effective limit drifts above the target → fix: atomic INCR, which is a single uninterruptible step → for multi-step token-bucket logic (refill + decrement + TTL) wrap it in a Lua EVAL so it runs as one atomic unit → don't use per-replica local counters: N replicas fragment the count to an effective N×L → decide fail-open vs fail-closed when Redis is unreachable (usually fail-open: availability over precision, with a local fallback bucket).Your cache fronts the DB at a 95% hit ratio. Which two failure modes will page you?
When does fan-out-on-write break for a news feed, and how do you resolve it?
Make the case that the estimate, not the feature list, should drive the architecture — then steelman the opposite.
You're handed a system that's slow at p99 but fine at the mean. How do you reason about it as the senior in the room?
An engineer proposes adding a cache to "make everything faster." Make the principal-level call.
- Clarify — functional requirements + the four non-functionals (scale, latency, availability, consistency); state assumptions.
- Estimate — QPS (avg & peak), storage/year, bandwidth, memory; read:write ratio.
- API — the hot operations and their shapes; pick REST/RPC and idempotency where it matters.
- Data model — the hot query first; choose KV / relational / wide-column / log to match the access pattern.
- High-level design — wire the universal blocks: client → CDN → LB → stateless app → cache → DB, with a queue + workers and object store as needed.
- Scale the bottleneck — vertical first, then horizontal: read replicas, sharding (consistent hashing), caching, async via queue.
- Deep-dive & trade-offs — name the one bottleneck with a number, the lever, its cost, the alternative you rejected, and the failure modes.
Design a news feed for 300M users with a sub-200 ms feed-read budget.
(postId, authorId, createdAt) in a capped Redis sorted set; posts stored once in a KV/blob store → core decision: aggregate at write time (push) or read time (pull) → default push so reads are a cheap precomputed lookup; the celebrity breaks pure push (fan-out explosion / hot partition), so go hybrid: pull for high-follower accounts, merged in at read time → run fan-out as an async idempotent outbox/log job so spikes degrade freshness not availability → cache the hot feeds; CDN media → failure modes: fan-out lag, hot partitions, the inactive-user wasted-work problem → trade-off: push pays at write time and wastes work on inactive users; pull pays at read time; the hybrid pays pull only where push would explode.Design a distributed key-value store that stays writeable under node and network failure.
★ Cheat sheet — prompt → lever
The method: Clarify → Estimate → API → Data model → Draw → Deep-dive → State the trade-off. The five levers: cache · replicate · partition · queue · tune consistency. Every prompt = which lever, on which box, at what cost.
Reduction table
| You need… | Reach for |
|---|---|
| Faster reads | Cache (hot set) or read replicas |
| Faster writes / more storage | Partition / shard (consistent hashing) |
| Survive a node loss | Replicate (leader/follower or quorum) |
| Survive a traffic spike | Queue (async, absorb the burst) |
| Lower latency, can tolerate staleness | Tune consistency (eventual / R+W) |
| Read-amplifier (shortener, paste) | CDN → cache → replica; immutable = free invalidation |
| Many-to-many feed | Push for masses, pull for celebrities (hybrid) |
| Decouple services + replay | Partitioned log; offset = consumer state |
Three rules for the design round
① Estimate before you draw — the math, not the features, sets the architecture. ② Name the bottleneck with a number, then a specific lever and its cost. ③ Senior signal = naming the alternative you rejected and what would flip the call.
📄 Full printable version →
★ Review guides & what to read next
5-min (weekly) Don’t re-read — recall. Say the seven steps + five levers; redraw the web-scale shape (CDN→LB→app→cache→DB→queue); pick one design and re-derive its bottleneck from memory.
30-min (when stalled) Blank-page a fresh prompt (chat backend, Dropbox, Twitter search) running the full checklist out loud; for each box, name the lever and its cost, then the alternative you rejected and why.
Read next, in order:①
Alex Xu — System Design Interview vol 1 & 2
(the worked designs) · ②
Kleppmann — DDIA
(the theory underneath) · ③ Dynamo paper (Lesson 8) · ④ Kafka design docs (Lesson 7). Latency numbers (Jeff Dean) ground every estimate.
📖 Primary sources: Alex Xu’s System Design Interview and Kleppmann’s DDIA — the two references behind every design here.
These notes reflect my current understanding and are updated as I learn, build, and discover better explanations.
