Consistent Hashing
Published
Your bar: redraw the ring on a whiteboard and explain — from memory — why
mod N is catastrophic, why a bare ring is lopsided, how vnodes flatten it, and what
to reach for when one key still runs hot. Grounded in Karger et al. (STOC 1997)
1
and Dynamo.
2
One sentence holds the whole topic. Each section just unpacks one chip of it:
Consistent hashing maps keys and nodes to one ring
so a membership change moves only K/N keys
uses virtual nodes to keep load even
and a bounded-load cap when a key runs hot
mod N is the enemy
Understand what the ring is escaping before you build it. The obvious scheme collapses on every scaling event.
mod N vs the ring. Below is the same comparison as a single
ring picture.

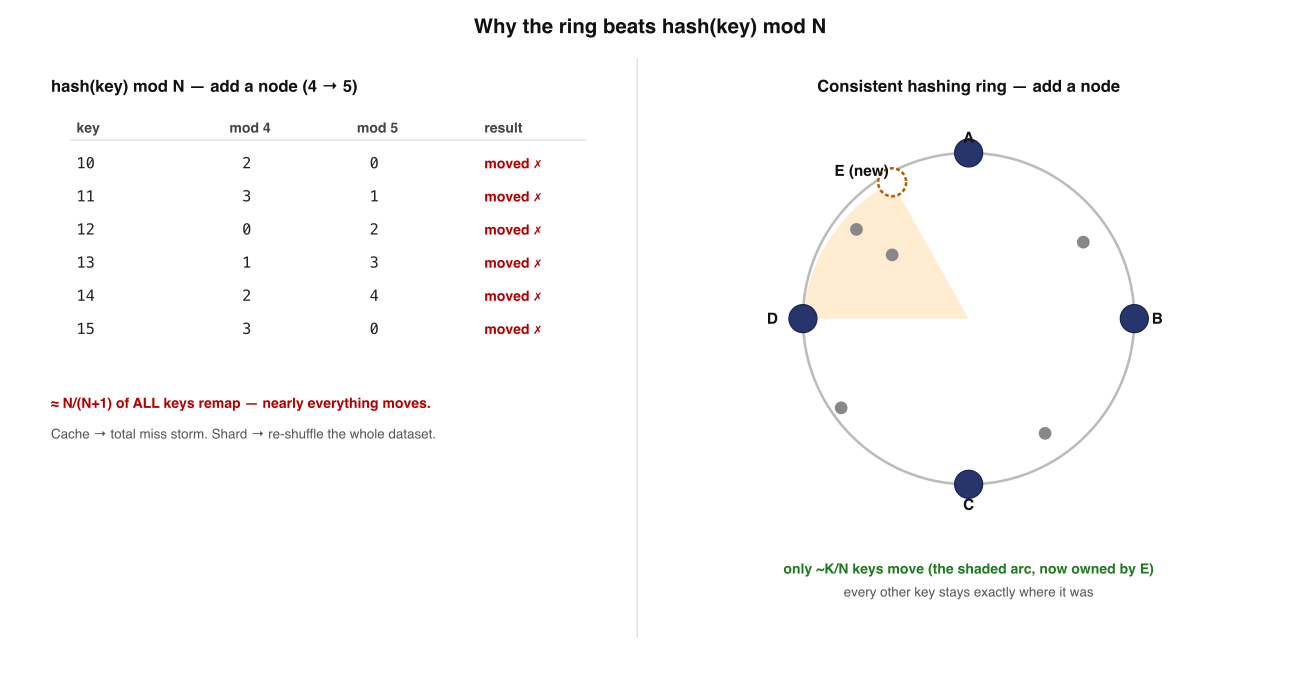

Why the ring beats mod N.
mod N remaps almost every key on a change; the ring steals only one
neighbour’s arc (~K/N) and leaves every other key exactly where it was.
mod N — what it is hash(key) mod N: balanced, O(1), trivial. The
default everyone reaches for first.
Why it fails Change N and mod (N+1) ≠ mod N for almost every key.
Expected fraction staying put ≈ 1/(N+1).
Cache blast radius Every key now hashes to the wrong node → every lookup misses → the stampede hits your DB at once.
Store blast radius A sharded store re-shuffles nearly the entire dataset across the network on every scaling event.
✓ It re-scatters ~all keys every change — re-shuffle the dataset / stampede the DB
🎯 Memory rule: Consistent hashing exists for ONE property — a membership change moves only ~K/N keys (one node’s worth), not nearly all of them.
Memory check
- What fraction of keys stay put when N→N+1 under mod N? → ~1/(N+1) — almost none
- Why is it worse for a cache than a store? → universal miss → DB stampede
- The one property the ring buys? → only ~K/N keys move on a change
The ring — what actually moves
Map nodes and keys into the same hash space. A key belongs to the first node clockwise. That locality is the whole win.
O(log N). Remove a node and its arc falls to its clockwise
successor — again ~K/N keys, to one node.
Placement A node sits at hash(node_id); a key is owned by the first
node clockwise from hash(key). Same hash space for both.
Hash space A circle of 0 … 2³²−1 (Dynamo uses 2¹⁶⁰).
Wrapping around the top is what makes it a ring.
Add Claims only the arc between it and its counter-clockwise neighbour — ~K/N keys from one node. Everyone else stays.
Remove Its arc’s keys fall to the clockwise successor — again ~K/N keys, to one node.
🧭 Memory rule: Lookup is a clockwise successor search (O(log N)); a membership change touches exactly one neighbour’s arc — but those arcs are not equal.
Memory check
- How is a key's owner found? → first node clockwise — a successor search, O(log N)
- On add, where do the moved keys come from? → one node: the new node's predecessor arc
- What price did locality buy us? → unequal arcs → load imbalance
Virtual nodes — fixing the lopsided ring
Random placement does NOT give equal arcs. The most-loaded node can hold log N×
the average. Vnodes are an averaging machine.

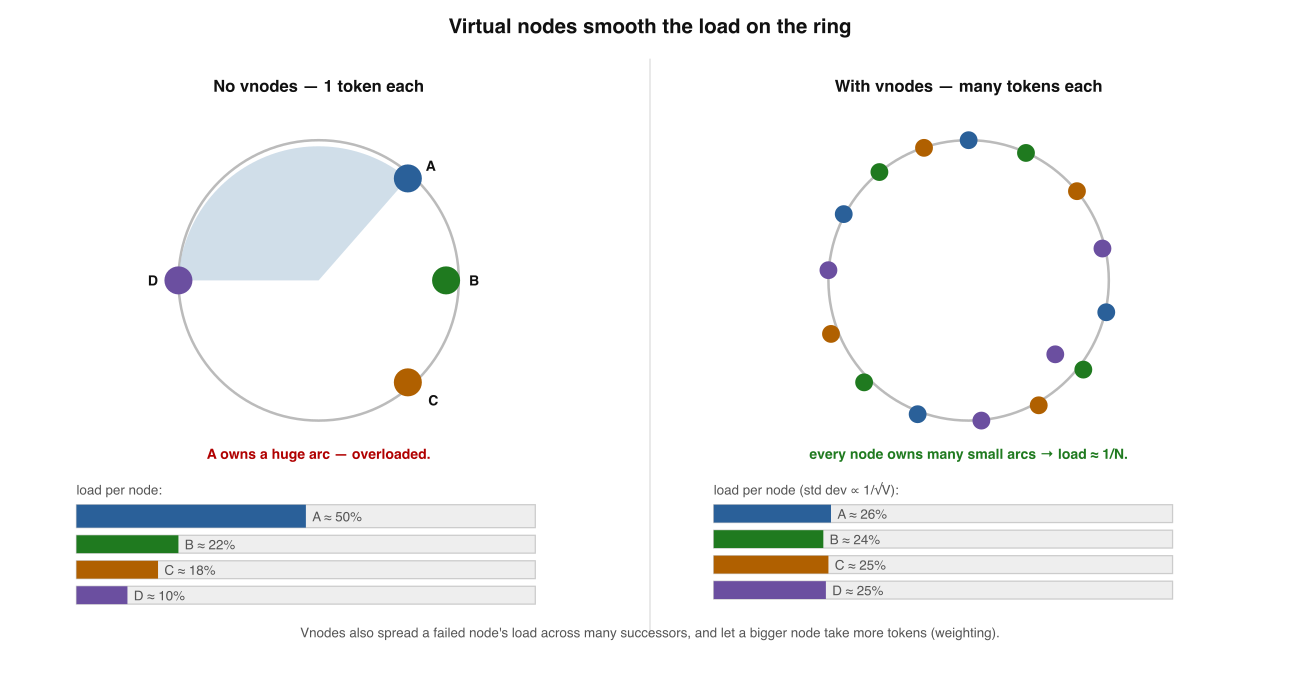

Virtual nodes smooth the load. Each physical node owns many small
vnodes scattered around the ring, so its total load — the sum of many independent arcs —
converges to 1/N.
The problem Random placement → largest arc ≈ Θ((log N)/N); the
hottest node can hold log N× average. With few nodes, one routinely owns
2–3× another.
The fix Hash each physical node to many positions (V ≈ 100–200
). N nodes scatter N·V points around the ring.
Why it works A node’s load = the sum of its V little arcs. Averaging V
independent pieces concentrates load at 1/N with std dev ~ 1/√V
— within a few % of uniform.
Three dividends ① balance (1/√V) · ② graceful failure (a dead node’s vnodes spread to many successors, not one) · ③ heterogeneity (2× capacity = 2× vnodes — weighting for free).
🌀 Memory rule: A bare ring is a hot-spot generator. Vnodes turn each node into a sum of many arcs — variance shrinks like 1/√V. Dynamo, Cassandra, Riak all use tokens, never a bare ring.
Memory check
- How bad is a bare ring? → hottest node ≈ log N × average
- Why do vnodes balance? → load = sum of V arcs; std dev ~ 1/√V
- Two extra dividends besides balance? → graceful failure spread + free weighting
Bounded loads — when one key still runs hot
Vnodes balance the keyspace, not popularity. A viral key has exactly one home. Cap every node and overflow clockwise.

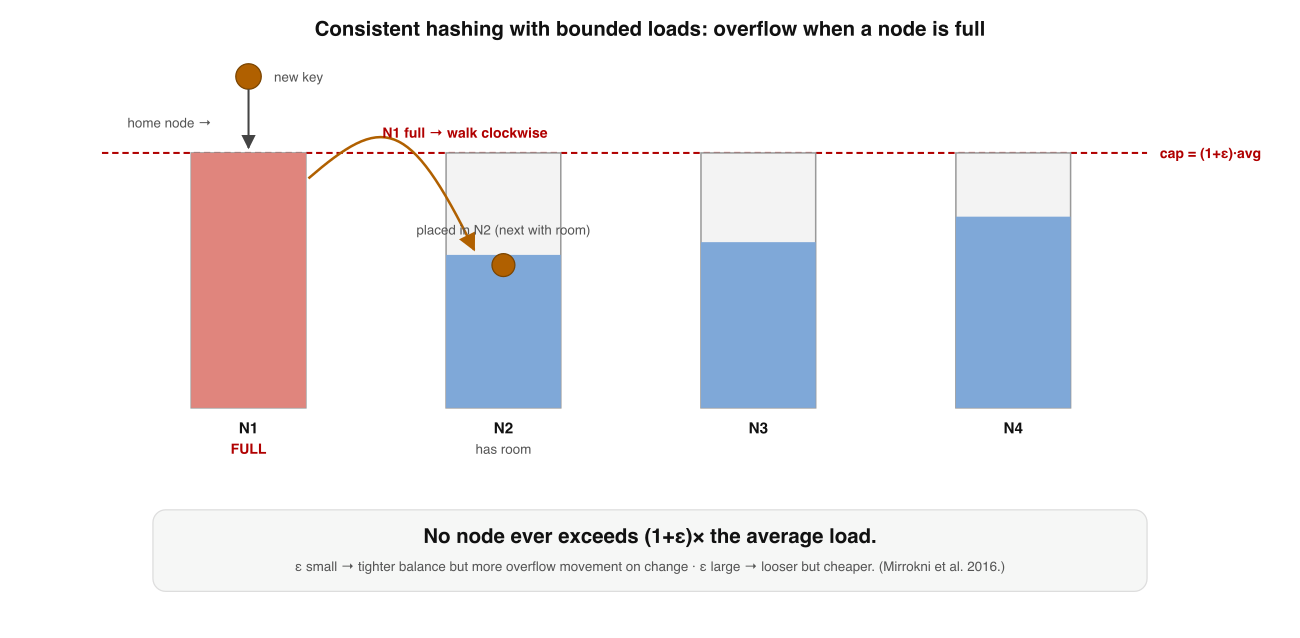

Consistent hashing with bounded loads. Cap each node at
(1+ε)× average. A key whose home node is full overflows clockwise to the
next node with room — so no node can exceed the cap.
(1+ε)× average — holds while a membership change still moves only a bounded fraction of keys.
Why vnodes aren’t enough They balance the keyspace but assume keys are equally popular. A viral key (or live connections in a cache / LB) hammers its one home node.
The mechanism Pick slack ε > 0; cap each node at (1+ε)×
average. A key whose home is at capacity walks clockwise to the next node with room.
The knob ε Small ε → tight balance, more overflow reassignment on change. Large ε → looser cap, cheaper.
In the wild Google Cloud load balancing and HAProxy balance modes use
exactly this. The answer to “vnodes balanced my keyspace but node 7 is still on fire.”
🔥 Memory rule: Bounded loads (Mirrokni–Thorup–Zadimoghaddam 2016) 3 caps each node at (1+ε)× average and overflows clockwise — guaranteeing the cap while keeping movement bounded.
Memory check
- Why don't vnodes solve a viral key? → they balance keyspace, not popularity; one key = one home
- What does a full node do with a new key? → overflow clockwise to the next node with room
- What does ε trade off? → tight balance vs overflow churn on change
You may not need a ring
The ring is the famous answer, not the only one — and often not the best one. Two alternatives that drop the ring entirely.
argmax over nodes of hash(k, node). Jump hash: a 5-line function mapping k
to a bucket in 0…N−1.
| Scheme | Lookup | Balance | Arbitrary removal | Weights |
|---|---|---|---|---|
| Ring + vnodes | O(log N) | good (needs vnodes) | yes | yes (more vnodes) |
| Rendezvous (HRW) | O(N) | excellent | yes | yes |
| Jump hash | O(log N) | perfect | no (high-end only) | no |
Rendezvous (HRW) — for free Removing a node only re-homes keys whose top weight was that node → exactly K/N move. Uniform argmax → no log N imbalance, no vnodes. 4
HRW — the cost O(N) per lookup. Fine for tens-to-low-hundreds of
nodes (the common case); for huge N go back to a ring or hierarchy.
Jump hash — the gift 5 lines, zero memory, very fast, perfect balance, minimal remap. Ideal for resharding a numbered range (8→10 shards). 5
Jump hash — the trap Grows/shrinks only at the high end and has no weights. Wrong for arbitrary cluster membership where any node may fail. Gorgeous and narrow.
✓ For small/medium clusters HRW is often simpler & more balanced; jump hash wins for numbered reshards
🧰 Memory rule: Ring+vnodes for arbitrary membership at scale · HRW for simple, well-balanced small clusters · jump hash only for a numbered range that grows at the end.
Memory check
- HRW's lookup cost and why it's still common? → O(N); fine for ≤ low-hundreds of nodes, balanced with no vnodes
- When is jump hash wrong? → arbitrary middle-node removal; it grows only at the high end
- Which alternative needs no vnodes for balance? → HRW (uniform argmax)
Replication — the preference list
A key isn’t on one node but N. The replicas are the next N distinct physical nodes clockwise — skip duplicate vnodes, prefer distinct racks.
R + W > N quorum operates over.
Replicas The next N nodes clockwise — but you must reach N distinct physical nodes, skipping extra vnodes of a machine you already picked.
The vnode trap Naïvely taking the next N vnodes can land all “replicas” on one machine — a single failure then loses the key.
Rack / AZ awareness Prefer distinct racks / availability zones so a rack power loss doesn’t take all N replicas at once.
How it composes Hashing decides which nodes hold a key; the quorum (
R + W > N) decides how many must agree. Together: the whole
storage layer.
✓ The next N DISTINCT physical nodes (ideally distinct racks) — or one failure loses the key
🗂️ Memory rule: The preference list = next N distinct physical nodes clockwise (across racks). Hashing picks which nodes; quorum picks how many agree.
Memory check
- Why "distinct physical" and not just "next N"? → extra vnodes collapse replicas onto one machine
- Why prefer distinct racks/AZs? → survive a rack/zone power loss
- How does hashing relate to quorum? → which nodes (hash) vs how many agree (R+W>N)
Retrieval practice — mix the sections
Answer from memory; the highlighted option is correct. Each one targets a different failure mode of the naïve mental model.
Q1. Adding one node under hash(key) mod N is catastrophic because…
Q2. Virtual nodes reduce load imbalance on a hash ring because…
Q3. Consistent hashing with bounded loads handles a hot node by…
Q4. Jump consistent hash is the wrong choice when you need to…
Q5. A lookup on a vnode ring is implemented as…
Q6. Building a replica preference list on a vnode ring, you must…
Reconstruct the topic from a blank page
Draw the ring, then write the six beats in order, one line each, with nothing on screen. Reveal and compare — gaps are your next drill.
1 mod N re-scatters ~all keys on a change · 2 ring: key → first node clockwise; a change moves ~K/N from one neighbour · 3 vnodes: load = sum of V arcs, std dev ~1/√V; balance + graceful failure + free weighting · 4 bounded loads: cap (1+ε)× avg, overflow clockwise — for popularity skew · 5 alternatives: HRW (argmax, O(N), no vnodes), jump hash (no memory, high-end only) · 6 replication: preference list = next N distinct physical nodes / racks; quorum R+W>N runs over it.
I’m your teacher — ask me anything. Say “grill me on consistent hashing” for mixed no-clue questions, or hand me a real workload (cache, sharded store, L7 load balancer) and I’ll walk you through ring vs HRW vs jump hash, your vnode count, and whether you need bounded loads. Want a spaced, interleaved drill set? Just ask.
Interview — pick your bar
Answer out loud in ~60s, then reveal. Core = recall · Senior = trade-offs & failure modes · Staff = synthesis under ambiguity · System Design = open design round (a different axis, not a harder level).
What problem does consistent hashing solve, and what's the one property it buys?
mod N which has no locality.Why is hash(key) mod N a trap? Quantify what happens when you add a node.
mod N is balanced and O(1), so it's the default everyone reaches for → but it has no locality: when N → N+1, mod (N+1) ≠ mod N for almost every key → the expected fraction that stays put is only ~1/(N+1) — nearly every key remaps → for a cache that means a universal miss → DB stampede; for a sharded store it means re-shuffling almost the whole dataset over the network on every scaling event.Walk me through a lookup on the ring and what its cost is.
hash(node_id); a key is owned by the first node clockwise from hash(key) — same hash space for both → lookup is a successor search: binary-search the sorted node positions for the next one clockwise, wrapping past the top of the ring → that's O(log N) in the number of (v)node positions → the wrap-around at 2³₂ is what makes it a ring rather than a line.Exactly which keys move when a node joins, and which when one leaves?
mod N cannot give you.A bare ring with 5 nodes is hot-spotting. Diagnose it with the math, then fix it.
Θ((log N)/N), so the hottest node can hold ~log N× the average; with few nodes one routinely owns 2–3× another → fix: virtual nodes — hash each physical node to many positions (V ≈ 100–200), scattering N·V points around the ring → a node's load becomes the sum of V independent little arcs, which concentrates at 1/N with std dev ~1/√V — within a few % of uniform → bonus dividends: a dead node's vnodes spread to many successors (graceful failure), and 2× capacity = 2× vnodes gives weighting for free.Vnodes balanced my keyspace but one node is still on fire. What's the failure mode and the fix?
(1+ε)× the average load and, when a key's home node is full, overflow it clockwise to the next node with spare capacity → this guarantees no node exceeds the cap while keeping the extra key movement bounded → ε is the knob: small ε = tighter balance but more churn/overflow, larger ε = looser cap but less movement → used in GCP's load balancer and HAProxy → if the hot key is read-heavy specifically, also replicate it across more nodes so reads fan out.How do you place N replicas on a vnode ring, and what's the classic bug?
R + W > N quorum operates over.When would you pick rendezvous (HRW) or jump hash over a vnode ring?
hash(key, node) (argmax) — it gives K/N-minimal movement and uniform balance with no vnode bookkeeping, so it's simpler and more balanced for tens-to-low-hundreds of nodes, at the cost of O(N) per lookup → jump hash is ~5 lines, zero memory, perfect balance — but buckets only grow/shrink at the high end and it has no weighting, so it fits numbered reshards (8 → 10) and is wrong for arbitrary node failure or heterogeneous capacity → the vnode ring wins when you need incremental, weighted, arbitrary membership changes — which is most real clusters.Separate consistent hashing from quorum replication. Where's the boundary, and why does it matter?
R + W > N guarantees a read overlaps the latest write → together they form the storage layer, but you can vary one without the other: tune R/W for the consistency/availability point (W=1 for always-writeable) while the ring stays fixed, or change vnode count/placement without touching the quorum → why it matters: a membership change is a placement event (re-replicate ~K/N keys to new owners), while a slow/lost node is a quorum event (hinted handoff, read-repair) — keeping them separate is how you reason about each failure cleanly.Argue for vnodes — then steelman why a system might deliberately avoid them.
A team caches with mod N and says "rehashing on scale-up is a one-time blip." Make the principal-level call.
mod N invalidates ~98% of keys on one change, the ring ~2% → principal move: mandate the ring (or HRW) for any cluster whose membership ever changes, and add stampede protection (single-flight + jittered TTLs) regardless, so even the ~K/N miss can't take the DB down.- Requirements — membership volatility (how often N changes), node heterogeneity, replication factor, ordered-scan needs, hot-key risk.
- Scheme choice — ring+vnodes (arbitrary, weighted, incremental) vs HRW (small/stable) vs jump hash (numbered reshards only); justify against the requirements.
- Hash space & placement — ring size, V per node (and weighting via vnode count), successor-search lookup cost.
- Rebalancing — what moves on add/remove (~K/N to one neighbour), how data streams, and the throttle to avoid saturating the network.
- Balance & hot spots — vnode variance (1/√V) for keyspace skew; bounded loads ((1+ε) cap + clockwise overflow) and/or hot-key replication for popularity skew.
- Replication placement — next N distinct physical nodes / racks / AZs (the preference list); how it composes with R + W > N.
- Failure & operations — node death (re-replication, hinted handoff), correlated failures, membership detection (gossip), and the metadata/overhead cost you accepted.
Design the sharding/routing layer for a 100-node distributed cache.
Design partitioning + replication for a write-heavy distributed key-value store that must survive node and AZ loss.
★ Cheat sheet — claim → engineering
Mental models: mod N = no locality (re-scatters all) · ring = first node clockwise (~K/N moves) · vnodes = sum of arcs (1/√V) · bounded loads = (1+ε) cap + overflow · HRW = argmax, O(N) · jump hash = 5 lines, high-end only · preference list = next N distinct physical nodes.
Translation table
| Term | What it actually is |
|---|---|
| Consistent hashing | Same ring for keys + nodes so a change moves ~K/N keys |
| Successor search | Binary search of sorted node positions, clockwise — O(log N) |
| Virtual node / token | One of V ring positions per physical node; balances via 1/√V |
| Bounded loads | Per-node cap (1+ε)× average; full node overflows clockwise |
| Rendezvous / HRW | Assign key to node with highest hash(k,node); no ring |
| Jump hash | 5-line key→bucket (0…N−1); zero memory; high-end resize only |
| Preference list | Next N distinct physical nodes/racks; the set R+W>N runs over |
Three rules for the design round
① Never mod N for cluster membership — it re-scatters everything. ② A bare ring is a hot-spot generator; always use vnodes (or HRW). ③ Match scheme to job: ring for arbitrary membership, HRW for small balanced clusters, jump hash only for numbered reshards.
