Streaming & Event-Driven, from first principles
Published
Your bar: reconstruct the whole streaming stack on a whiteboard from memory — to tell a sound event-driven design from cargo-culted “we use Kafka.” Every level is built to be seen and redrawn, not read. Grounded in Kleppmann’s DDIA Ch. 11 1 , Kreps’s The Log 2 , Fowler’s pattern essays 3 , and the Dataflow paper. 4
One structure holds the whole book. Every level just unpacks one chip of it:
It’s all one append-only log
sharded into Kafka partitions
read by offset, replayable
into events, state & windows
The Log — the one structure under everything
The WAL, the LSM commit log, the outbox — all the same shape. This book makes it the protagonist.

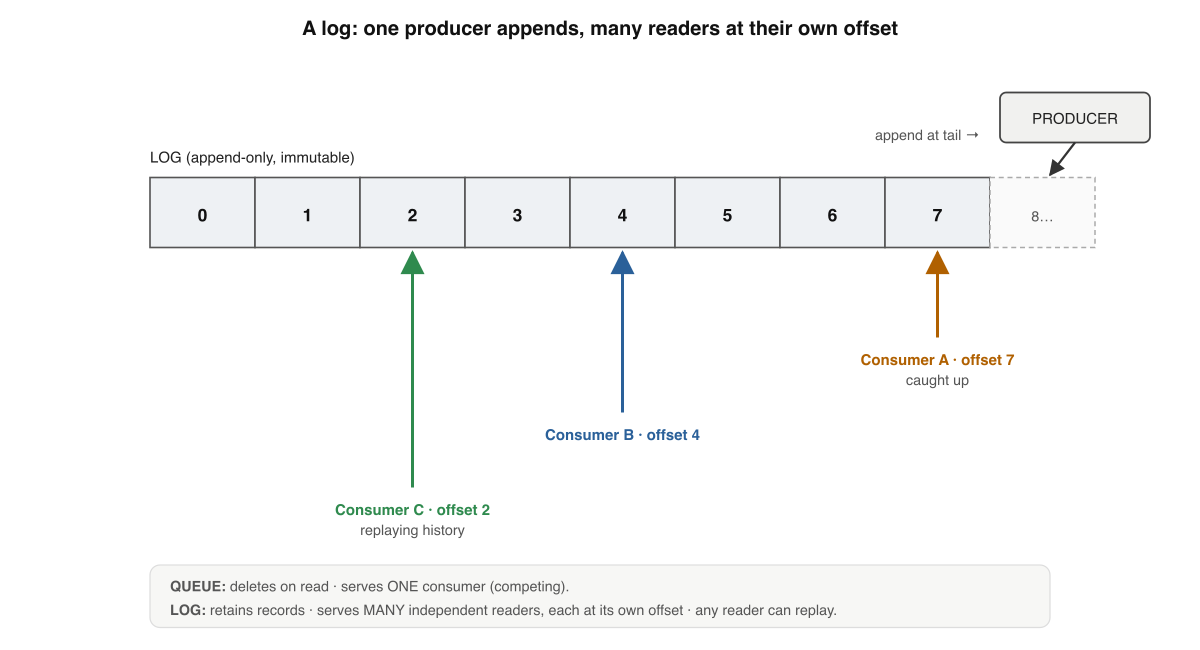

A log is an append-only strip of numbered cells with one producer and many independent readers. Offsets 0–7 run left to right; a producer appends at the tail while consumers A, B, and C each track their own position, reading the same retained records at their own pace.
Is An append-only, totally-ordered, immutable sequence of records, each at a monotonic offset — its identity and its position.
Why it exists The offset is a logical clock for one log: it buys the total order Part 1 said you usually can’t have — by giving up distribution.
Like (Part 3) The WAL, the LSM commit log, the outbox — Kreps’s insight: the log a DB keeps for itself is the log you want between systems. 2
The payoff Immutable + ordered = deterministically replayable. Replication, recovery, event sourcing, reprocessing all stand on it.
| Message queue | Log | |
|---|---|---|
| On read | deletes the message | retains the record |
| Consumers / message | one (competing) | many (independent) |
| Reader’s position | held by the broker | an offset per consumer |
| Replay history | not possible | seek to any offset |
✓ A queue deletes on ack; a log retains and lets many readers each keep an offset 1
🪵 Memory rule: A log is append-only, ordered, immutable, offset-addressed — reading never consumes, so it’s a shared, replayable source of truth.
Memory check
- Four load-bearing properties? → append-only, totally-ordered, immutable, offset-addressed
- What does the offset collapse a reader's position to? → a single integer
- Log vs queue on read? → retain & multi-read vs delete & point-to-point
Kafka — one log becomes many
Cut the log into partitions, spread them across brokers. You scale both directions — at one cost: order.

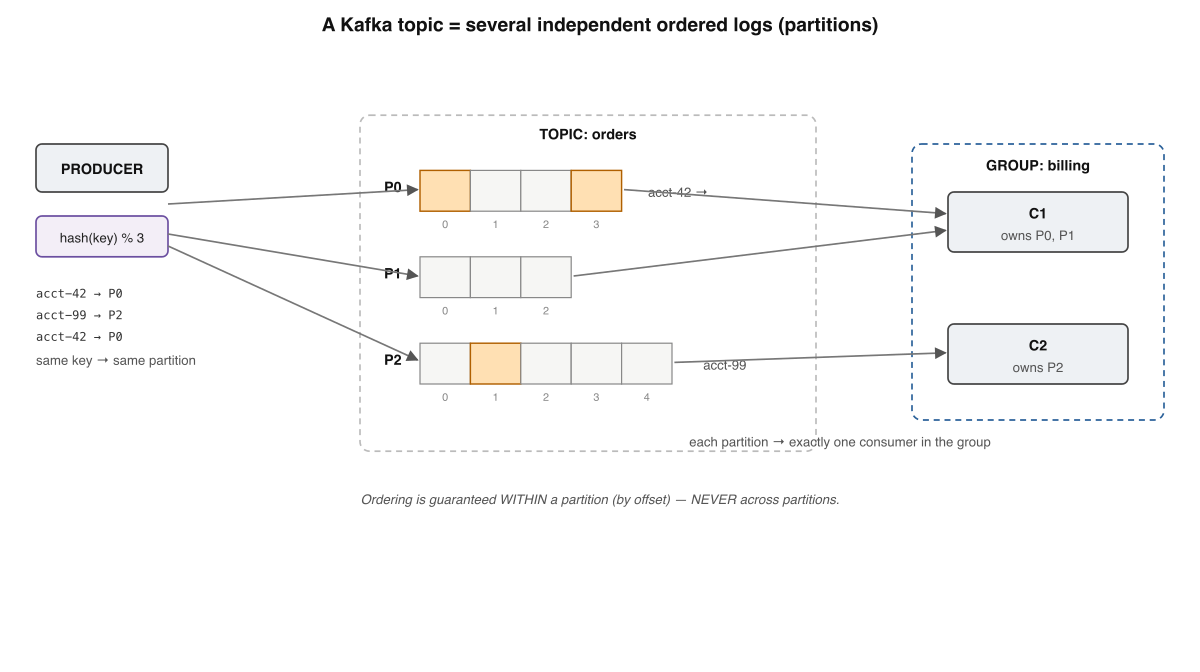

A Kafka topic split into three partitions, each an independent ordered log addressed by offset. Ordering is guaranteed within a partition and nowhere across them.
accountId).
Partition count is your throughput dial and your consumer-parallelism ceiling.
Topic / partition A topic is a set of partitions; each partition is one append-only log. Partition = the unit of parallelism, ordering, replication.
Ordering boundary Strict total order within a partition; none across them. No global offset — Part 1’s “no global clock,” honoured.
Consumer groups Each partition → exactly one consumer in the group; two independent groups each see the whole topic (fan-out).
Replication Each partition has a leader + ISR followers (factor 3).
acks=all + min.insync.replicas=2 + no unclean election =
durable.
✓ Order lives only inside a partition; design is deciding what must share one
🗂️ Memory rule: A topic is many ordered logs; key routes an entity’s history to one partition; groups divide partitions to scale reads; replication keeps each alive.
Memory check
- Where does ordering hold? → within a partition only
- 3 partitions, 5 consumers in a group? → 3 active, 2 idle
- Why never grow partition count casually? →
hash % Nchanges break key locality
Delivery guarantees — one choice decides everything
A consumer does two things per record: process and commit. Where the crash lands is your guarantee.

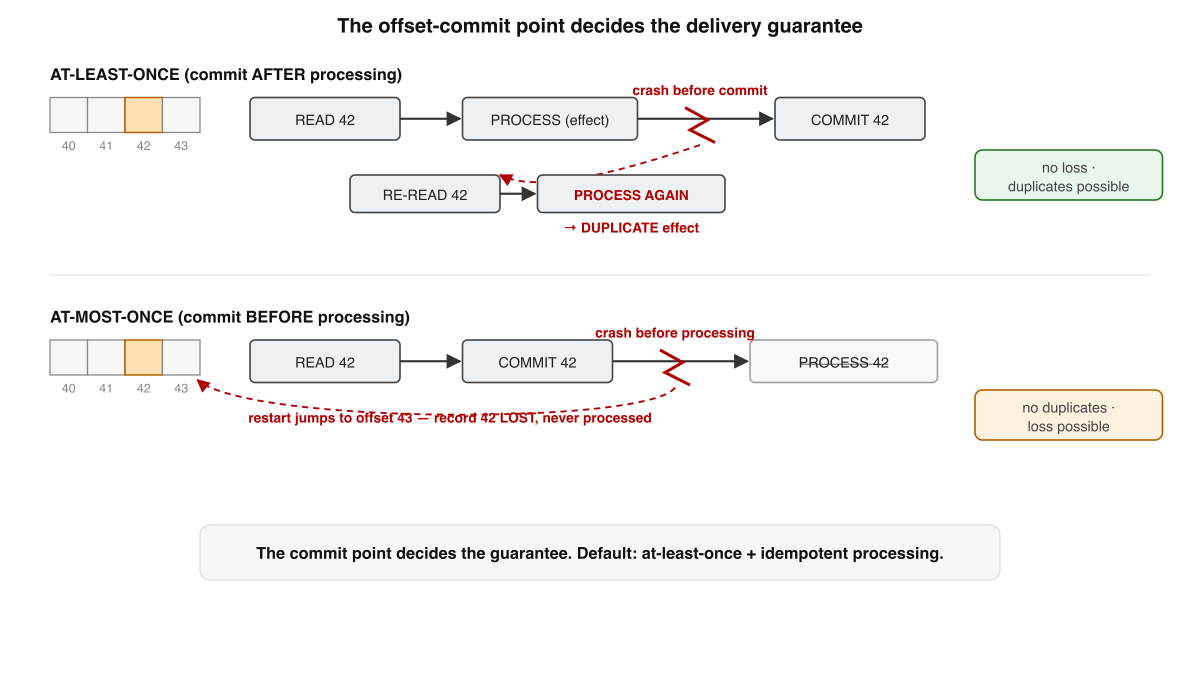

The offset-commit point decides the delivery guarantee. A crash between process and commit reprocesses the record (at-least-once); a crash between commit and process loses it (at-most-once).
| Order | Crash falls between | Outcome | Guarantee |
|---|---|---|---|
| process → commit | process & commit | record re-read, reprocessed | at-least-once |
| commit → process | commit & process | record skipped, gone | at-most-once |
The trap “Exactly-once delivery” is impossible over an unreliable channel (Part 1, two generals). You build exactly-once processing — the effect happens once.
The default at-least-once + an idempotent consumer: dedup by a stable id, or set an absolute value, or upsert by event id. Reprocessing becomes a no-op.
Kafka EOS Idempotent producer (PID + sequence) drops retried writes; transactions
bind output records + offset commit atomically (read_committed).
The boundary EOS holds only inside Kafka. Charge Stripe or write Mongo, and you’re back to idempotency keys + the outbox (Part 2).
✗ “enable.auto.commit gives me at-least-once”
✓ Auto-commit fires on a timer before your work finishes → leans at-most-once;
disable it, commitSync after the effect
🎯 Memory rule: Commit after processing = at-least-once (dupes); before = at-most-once (loss). Default to the first and make the consumer idempotent.
Memory check
- Commit before processing → which guarantee? → at-most-once
- How do you reach exactly-once effects? → at-least-once + idempotent consumer
- Where does Kafka EOS stop? → at any external side effect
Events vs Commands vs State — what goes on the topic
The tense is the tell: imperative verb = command (rejectable); past participle = event (a fact).

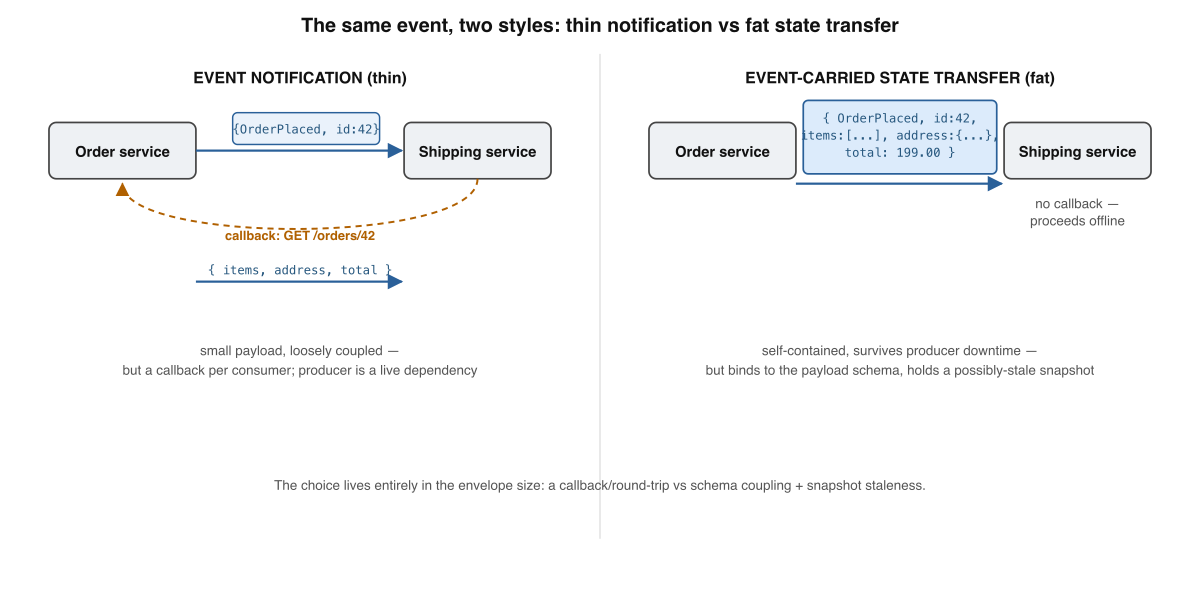

The same OrderPlaced event, modelled thin versus fat. Left — an event
notification carrying only an id forces a callback; right — event-carried state transfer
ships the full payload, so the consumer needs no callback.
Command PlaceOrder — imperative, may be rejected, one handler,
expects a response. Couples sender to one receiver.
Event OrderPlaced — past-tense fact, cannot be rejected, broadcast.
Couples the producer to nothing. Honesty rule: true even if no one listens.
3
Notification (thin) { orderId: 42 } — consumer calls back for
detail. Loose coupling, but a round-trip and a sync dependency.
State transfer (fat) { orderId, items, address, total } — no
callback, survives producer downtime, but binds to the payload schema and freezes a
snapshot.
| Notification (thin) | State transfer (fat) | |
|---|---|---|
| Coupling | loose — pulls what it needs | tighter — binds to schema |
| Availability | fails if producer is down | survives producer downtime |
| Staleness | reads latest on callback | holds a frozen snapshot |
✓ If exactly one consumer must run, it’s a command in disguise — you lost the decoupling events buy 3
📣 Memory rule: Command = rejectable request to one handler; event = immutable broadcast fact. Thin events callback; fat events ship a snapshot you must keep evolving.
Memory check
- Tense test for command vs event? → imperative verb vs past participle
- Cost of a thin event? → a callback + the producer becomes a sync dependency
- Why does event schema evolution bite harder than API? → events live forever & get replayed
Event sourcing — the log is the state
Stop treating the log as a recovery aid behind your “real” state. Make the log the real state.

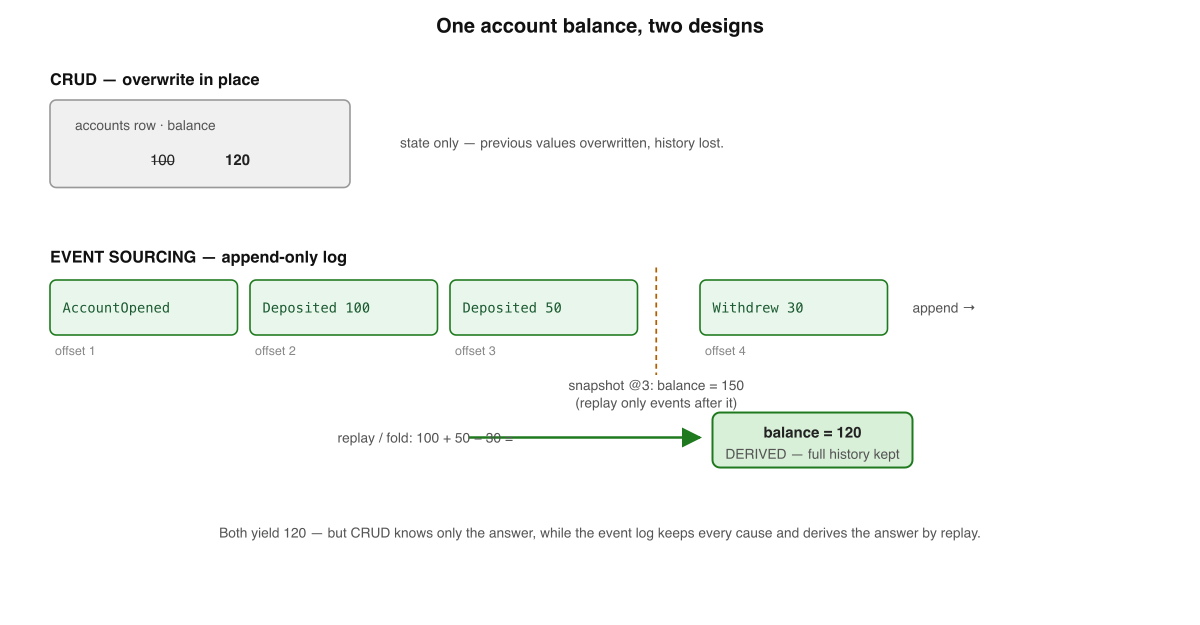

Two ways to know an account holds 120. The top row is destructive CRUD; the bottom row is an append-only event log folded into the same answer.
balance field anywhere — it's an opinion about the events. A snapshot is an optimization,
never the source of truth.
Is Store every change as an immutable ordered event; current state is derived by folding the log. The events are the truth. 3
vs CRUD CRUD overwrites in place — keeps the what, throws away the why and when. Event sourcing never overwrites; corrections are new events.
You gain A complete audit log by construction, time-travel to any past state, and freedom to build new read models retroactively.
You pay Replay (so you keep snapshots) + eternal schema versioning — you can never migrate old events, they’re historical facts. 1
Aggregate The consistency boundary (one Account) you rebuild &
validate against; the decision reads state, the result writes an event.
Event store Append-only DB keyed by aggregate id; one hard guarantee — per-stream order + an optimistic-concurrency (compare-and-set) check on append.
✓ Snapshots are caches that drift; delete every one and rebuild from the log
📜 Memory rule: The log is the system of record; state is a fold of it; snapshots are caches; old events are facts you version forever, never migrate.
Memory check
- Where does the balance live? → derived by folding events
- Purpose of a snapshot? → avoid replaying full history each read
- What does the aggregate enforce? → invariants before appending
CQRS — one write model, many read models
The shape you write (normalized, safe) is rarely the shape you read (denormalized, fast). Stop forcing one schema to be both.

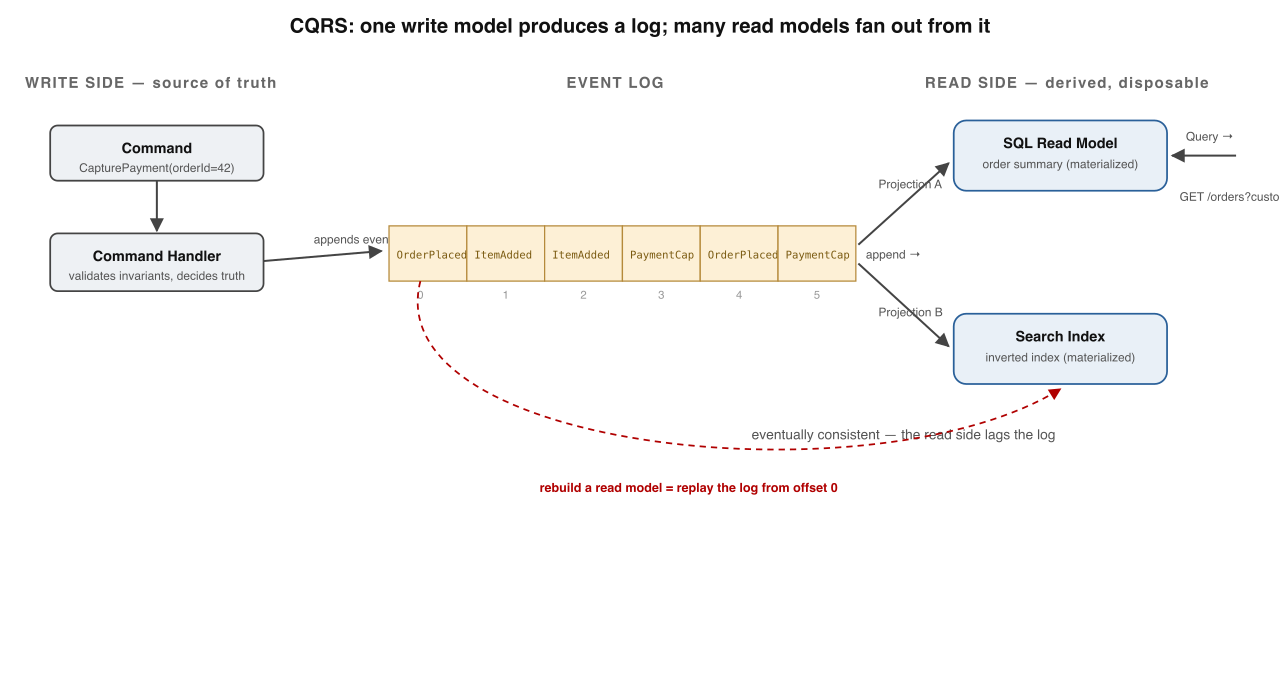

The CQRS split around a central event log: a command flows through a write model that appends events; two independent projections consume the log into two differently-shaped read stores, each serving its own queries.
| Concern | Write model | Read model(s) |
|---|---|---|
| Optimized for | invariants, correctness | query latency, shape |
| Schema | normalized, one place per fact | denormalized, one shape per query |
| Count | exactly one | as many as query patterns |
| Source of truth? | yes | no — derived, disposable |
Projection A consumer that reads the log in order and applies each event to its
own store — (read state, next event) → new read state. Two projections, one
log, zero coordination.
Eventually consistent A projection trails the latest offset by a small gap — the read side is a follower of the log (Part 1). Read-your-writes needs care.
The superpower A read model is a pure function of the log → DROP it
and replay from offset 0 to rebuild, fix a bug, or add a brand-new query shape with no
write-side change.
1
The discipline Projections must be deterministic and idempotent — same events → same state, reprocessing never double-applies.
✓ It adds eventual-consistency complexity; worth it only where read/write asymmetry is severe 3
🔀 Memory rule: One write model is the source of truth; read models are disposable projections of the log — rebuildable by replay, eventually consistent by design.
Memory check
- Source of truth — write or read model? → the write model / log
- Why many read models? → one shape per query pattern
- Fix a buggy projection? → fix code, clear store, replay from 0
Stream processing — computation on the moving log
Batch reads a bounded file once and stops; a stream job is a long-running graph over an unbounded log.

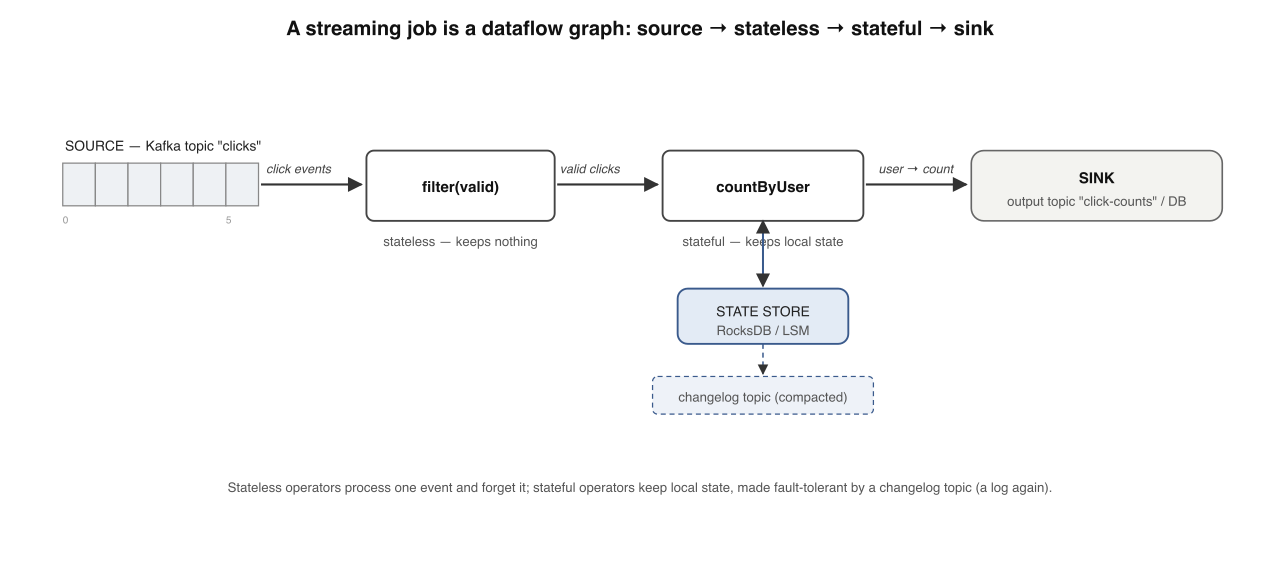

Stateless keeps nothing; stateful keeps local state. A dataflow graph: a source topic feeds a stateless filter (no store), then a stateful per-user count (state-store cylinder backed by a changelog topic), then an output sink.
| Node | Role | State |
|---|---|---|
| Source | read | offset only |
| filter(valid) | drop invalid records | none |
| countByUser | running count per user | local store + changelog |
| Sink | write | none |
Stateless map / filter / enrich — hold nothing between events, so a restart loses nothing; replay the input and outputs match. Parallelizes freely.
Stateful aggregations & joins must remember across events → a local state store (RocksDB / an LSM-tree, Part 3) that must survive a crash.
Recovery Kafka Streams backs each store with a compacted changelog topic ; a new instance rebuilds by replaying it — the WAL-and-replay idea, distributed.
Two engines Kafka Streams = a library you embed (parallelism follows partitions). Flink = a cluster with distributed-snapshot checkpoints + first-class event time.
✓ They force key-based partitioning + a shuffle so each key reaches one worker — a hidden network step that often dominates cost
🌊 Memory rule: A stream job is a dataflow graph over an unbounded log; stateless ops replay free, stateful ops keep a local store backed by a changelog.
Memory check
- Why does filter survive a restart for free? → it holds nothing; replay reproduces output
- How is a state store made fault-tolerant? → a compacted changelog topic, replayed on recovery
- Kafka Streams vs Flink shape? → embedded library vs deployed cluster
Time, windows & watermarks — “the last 5 minutes” of what clock?
Two clocks diverge because there’s no global clock. Bucket by event time for reproducibility; decide completeness on incomplete data.

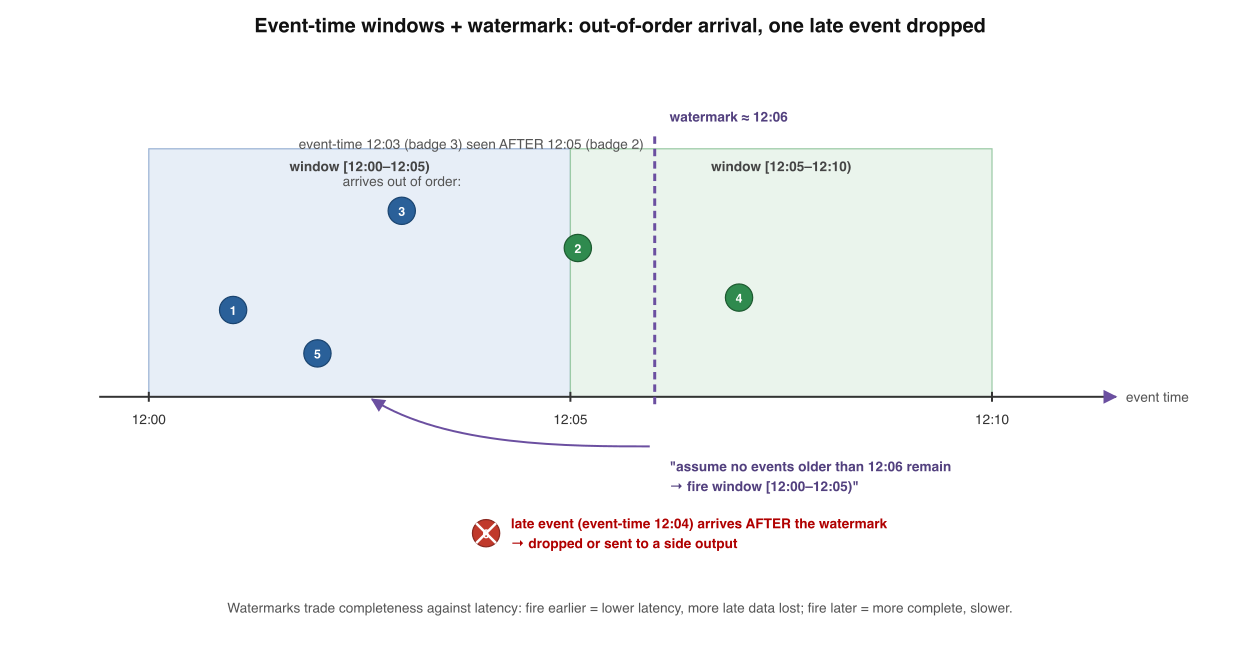

Out-of-order events on an event-time line, with a watermark firing the first window and one late event dropped. The watermark trades completeness against latency.
| Window | Definition | Example |
|---|---|---|
| Tumbling | fixed size, non-overlapping; each event in one |
|
| Hopping | fixed size, advance < size; windows overlap | 5-min window every 1 min → in 5 windows |
| Sliding/session | relative to each event, gap-based | session ends after 30 min idle |
Event time vs processing time Event time = when it happened (at source). Processing time = when your operator saw it. Skew is unbounded — bucket by event time or results aren’t reproducible.
Late data is intrinsic Offset order is arrival order, not event-time order. A buffered phone delivers a 12:03 event after a 12:05 one. Not an edge case — a certainty.
Watermark A marker asserting the stream is probably complete up to event time T (typically max-seen − allowed lateness). When it passes a window’s end, the window fires. 4
Truly late event Two escape hatches: drop it (accept loss) or side-output it for a correction / re-fire — which leans on idempotency (re-emit must overwrite, not double-count).
✓ The data carries no “all arrived” signal; the watermark is a tunable completeness↔latency knob, no correct setting 4
⏱️ Memory rule: Bucket by event time; a watermark is a heuristic “probably complete to T” that fires windows — trading completeness against latency, the slowest input setting the pace.
Memory check
- Why bucket by event time, not processing time? → reproducible results despite skew
- What does watermark T assert? → probably complete up to event time T
- Options for a late event after firing? → drop or side-output for correction
Building it right — the capstone checklist
Assume at-least-once everywhere; make every consumer idempotent — so re-delivery, replay, and recovery are all the same safe operation.

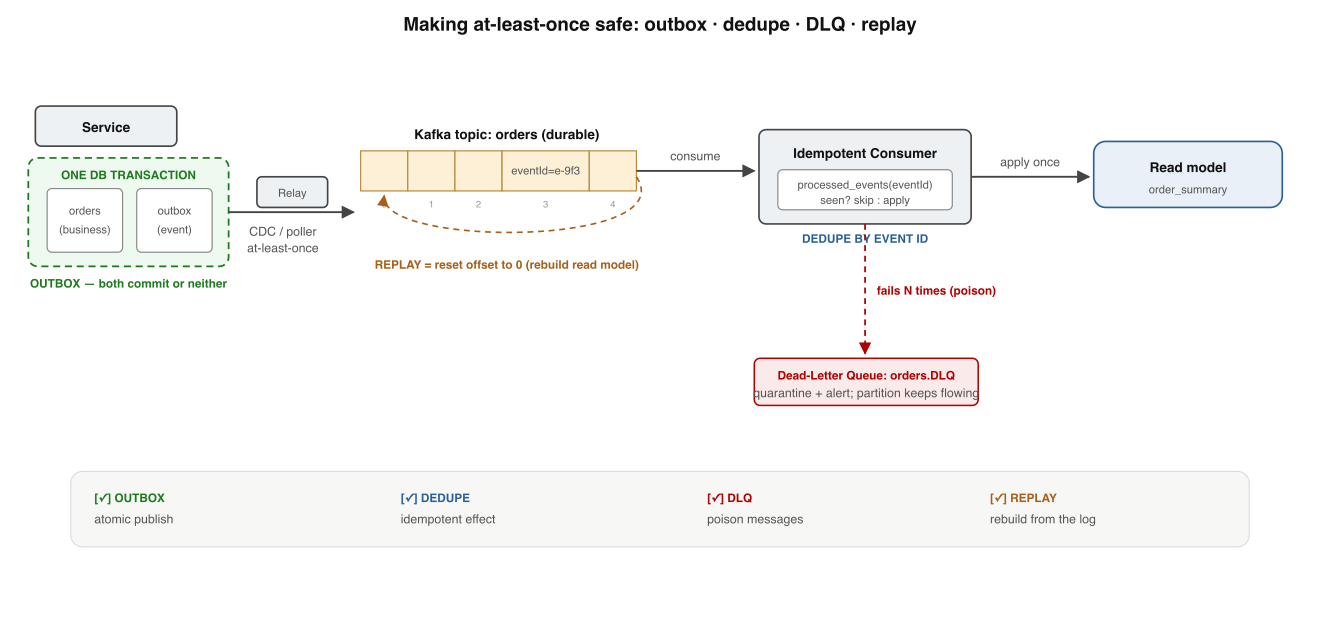

The safety patterns that make at-least-once delivery reliable, as a left-to-right checklist: one outbox transaction → a relay → an idempotent consumer that dedupes by event id → a dead-letter queue for poison messages → replay by resetting the offset.
| Pattern | Failure it closes | Earlier callback |
|---|---|---|
| Idempotent consumers | duplicate delivery | Part 1: idempotency keys |
| Transactional outbox | dual-write inconsistency | Part 2: the outbox |
| Replayable events + safe schema | rebuild / new read model | Part 3: append-only log, encoding |
| Dead-letter queue | poison messages | Part 1: partial failure |
| Backpressure | overload collapse | Part 1: resilience |
Exactly-once effects | the delivery illusion | Part 1: idempotency |
Idempotent consumer Stable producer-assigned eventId; insert it
ON CONFLICT DO NOTHING in the same transaction as the effect —
duplicate arrival, once-applied result.
Outbox bridge Write the event row in the same local txn as the business data (no dual write); a Debezium-style relay publishes it — itself at-least-once, which is why consumers must dedupe.
DLQ & backpressure After N fails, route a poison message to
orders.DLQ (breaks ordering for that key — alert on depth). Kafka’s pull
model is natural backpressure; a slow consumer just lags.
Replay Reset the group offset to earliest and re-consume — but handlers must stay pure (no emails on replay) and schemas must evolve safely (Avro + registry).
✓ EOS is Kafka-to-Kafka only; cross a system boundary and you build exactly-once effects with idempotency 1
🛡️ Memory rule: Outbox guarantees every event is published; idempotent consumers make re-publication harmless. Exactly-once is a property you build, not a delivery you buy.
Memory check
- Why must every consumer be idempotent? → at-least-once means dupes are normal
- What does the outbox close? → the dual-write gap between DB & broker
- Two disciplines replay demands? → pure handlers + safe schema evolution
Where each layer shows up — real systems
Grounding for your judgment: the concept, a concrete place it lives, and the shape it usually takes.
| Concept | Real use case | Usual shape |
|---|---|---|
| The log | One | backbone |
| Kafka partitions | Key | transport |
| Offset commit | Disable auto-commit, | consumer config |
| Event vs state | Emit a thin | modelling |
| Event sourcing | A bank ledger / audit-heavy domain stores deposits & withdrawals as events, folds for balance | write side |
| CQRS | One write log → a denormalized dashboard table + a search index + a revenue rollup, each replayable | read side |
| Stream processing | Kafka Streams | compute |
| Windows & watermarks | Fraud rate per 5-min tumbling window over event time, watermark tuned for latency vs completeness | compute |
| Building it right | Outbox → CDC relay → idempotent consumer → DLQ on poison → replay to rebuild a view | infra |
Pattern to notice: most production value is a partitioned log + idempotent consumers; event sourcing and CQRS are powerful but earn their schema-versioning tax only where audit/replay/read-asymmetry are real. 1
Interview — pick your bar
Answer out loud in ~60s, then reveal. Core = recall · Senior = trade-offs & failure modes · Staff = synthesis under ambiguity · System Design = open design round (a different axis, not a harder level).
What is the difference between a log and a message queue?
What does the offset of a record identify, and to what scope does Kafka guarantee ordering?
Define at-most-once, at-least-once, and exactly-once delivery in one line each.
What is an event vs a command, and how does that shape coupling?
OrderPlaced); the producer is coupled to nothing. A command is a request directed at one handler (PlaceOrder), expecting an action. Event-driven architecture trades the producer's knowledge of consumers for loose coupling and fan-out — the cost is no single place that "owns" the flow.A consumer reads, processes, then commits the offset. Walk me through the failure modes.
enable.auto.commit fires on a timer before your work, silently leaning at-most-once — the classic source of "we thought we had at-least-once" data loss.Someone says "we use Kafka exactly-once, so duplicates are impossible." Push back.
Explain CQRS and the consistency trade-off you're signing up for.
What is backpressure in a streaming pipeline, and how does Kafka's model handle it?
When is event sourcing the right call, and what does it cost you?
Event time vs processing time — why do they diverge, and how do you decide a window is "done"?
How does a stateful stream operator survive a crash without recomputing from the beginning?
- Pin the delivery guarantee first — "assume at-least-once, make every consumer idempotent" — and justify it.
- Choose the partition key from the ordering requirement (what must be ordered together), and acknowledge partition count is near-immutable.
- Solve the dual-write problem at the source — transactional outbox + CDC relay, not a best-effort publish-after-commit.
- Make consumers idempotent (dedupe by event id in the same txn as the effect) and add a DLQ with alerting on depth for poison messages.
- State the replay story: pure handlers + schema registry so a read model rebuilds by offset reset.
- Name the failure modes you tolerate (eventual consistency, reprocessing on crash) and how you bound them.
- Call out observability: consumer lag, DLQ depth, end-to-end event-time skew.
Design a reliable order-events pipeline that is safe to operate at 3 a.m.
orderId; at-least-once delivery as the contract; idempotent consumers deduping by eventId in the same txn as the effect; a DLQ after N failures with alerting on depth; replay by offset reset with pure handlers + a schema registry; backpressure handled by the pull model; and the one-sentence invariant — assume at-least-once, make every consumer idempotent.Design a read-model / CQRS layer that can be rebuilt at will.
Retrieval practice — mix the levels
Reading builds fluency (feels familiar). Recall builds storage (lasts). Answer from memory — instant feedback.
Q1. What does the offset of a record in a log identify?
Q2. Within a single Kafka topic, ordering is guaranteed…
Q3. A consumer commits the offset before processing. This yields…
Q4. In an event-sourced account, where does the current balance live?
Q5. What does a watermark of timestamp T assert?
Q6. What does "exactly-once" realistically mean across a system boundary?
Reconstruct the stack from a blank page
Write the nine levels in order, one line each, with nothing on screen. Then reveal and compare — gaps are your next drill.
1 Log: append-only, ordered, immutable, offset-addressed; retains, replayable · 2 Kafka: topic = many partitions; order in-partition; key routes; groups scale reads; replication · 3 Delivery: commit-after = at-least-once, commit-before = at-most-once; default + idempotent = exactly-once effects · 4 Event (fact, broadcast) vs command (request, one handler); thin notification vs fat state transfer · 5 Event sourcing: log is truth, state = fold, snapshots are caches, version schemas forever · 6 CQRS: one write model, many disposable read-model projections, eventually consistent, rebuild by replay · 7 Stream processing: dataflow graph; stateless replays free, stateful keeps a changelog-backed store · 8 Time: event vs processing time; windows; watermark = probably-complete-to-T, completeness↔latency · 9 Build right: assume at-least-once + idempotent consumers; outbox, DLQ, backpressure, replay.
I’m your teacher — ask me anything. Say “grill me on the streaming stack” for mixed no-clue questions, or drop a real pipeline and I’ll place its delivery guarantee, partitioning key, and replay story with you. Want the next part — Applied Systems Design? Just ask.
★ Cheat sheet — buzzword → engineering
Mental models: Log = the one true tape · Partition = one ordered shard · Offset = your bookmark · Event = a fact · Command = a request · Event sourcing = log is state · CQRS = one writer, many readers · Watermark = “probably done to T” · Exactly-once = a property you build.
Translation table
| Buzzword | What it actually is |
|---|---|
| Distributed log / Kafka | An append-only log sharded into ordered partitions |
| Consumer group | Partitions divided so each has one active reader |
| Exactly-once | At-least-once delivery + idempotent effects (Kafka-to-Kafka for EOS) |
| Event-driven | Broadcasting immutable past-tense facts, producer coupled to nothing |
| Event sourcing | The log is the source of truth; state = fold(events) |
| CQRS | One write model + N disposable read-model projections |
| Stream processing | A long-running dataflow graph over an unbounded log |
| Watermark | A heuristic “stream probably complete up to event time T” |
| Outbox | Event row written in the same txn as the business data |
Three rules for the review chair
① Order lives only in a partition — decide what must share one before you choose a key. ② Assume at-least-once and make every consumer idempotent. ③ Read models are disposable; the log is truth — judge any design by “how do you replay?”
★ Review guides & what to read next
5-min (weekly) Don’t re-read — recall. Say the one structure; redraw the spine + the offset-commit fork; recite the nine rules; translate three buzzwords blind.
30-min (when stalled) Blank-page reconstruct all nine levels; re-derive why partitioning forces the key decision and why at-least-once forces idempotency; then trace one real pipeline end to end.
Read next, in order: ① DDIA Ch. 11 — Stream Processing (the spine, read first) · ②
Kreps — “The Log”
(Level 1) · ③
Fowler — Event Sourcing & CQRS
(Levels 5–6) · ④ Akidau et al. — “The Dataflow Model” (Level 8).
📖 Primary source:
Kleppmann, Designing Data-Intensive Applications, Ch. 11–12
— the highest-trust grounding for this book.
These notes reflect my current understanding and are updated as I learn, build, and discover better explanations.
